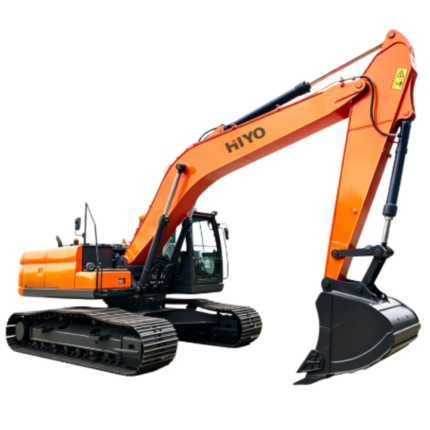

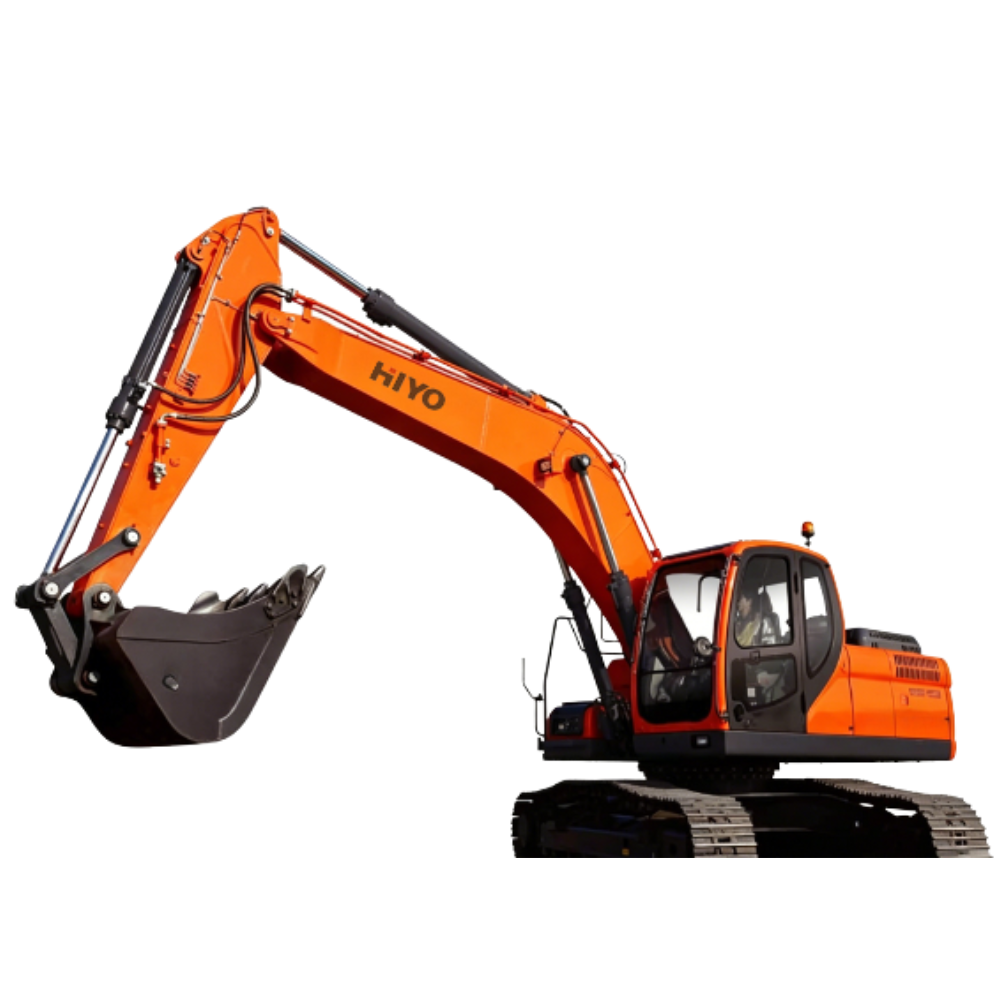

Hiyo HDX225NLCA Medium Crawler Excavator
Product Overview

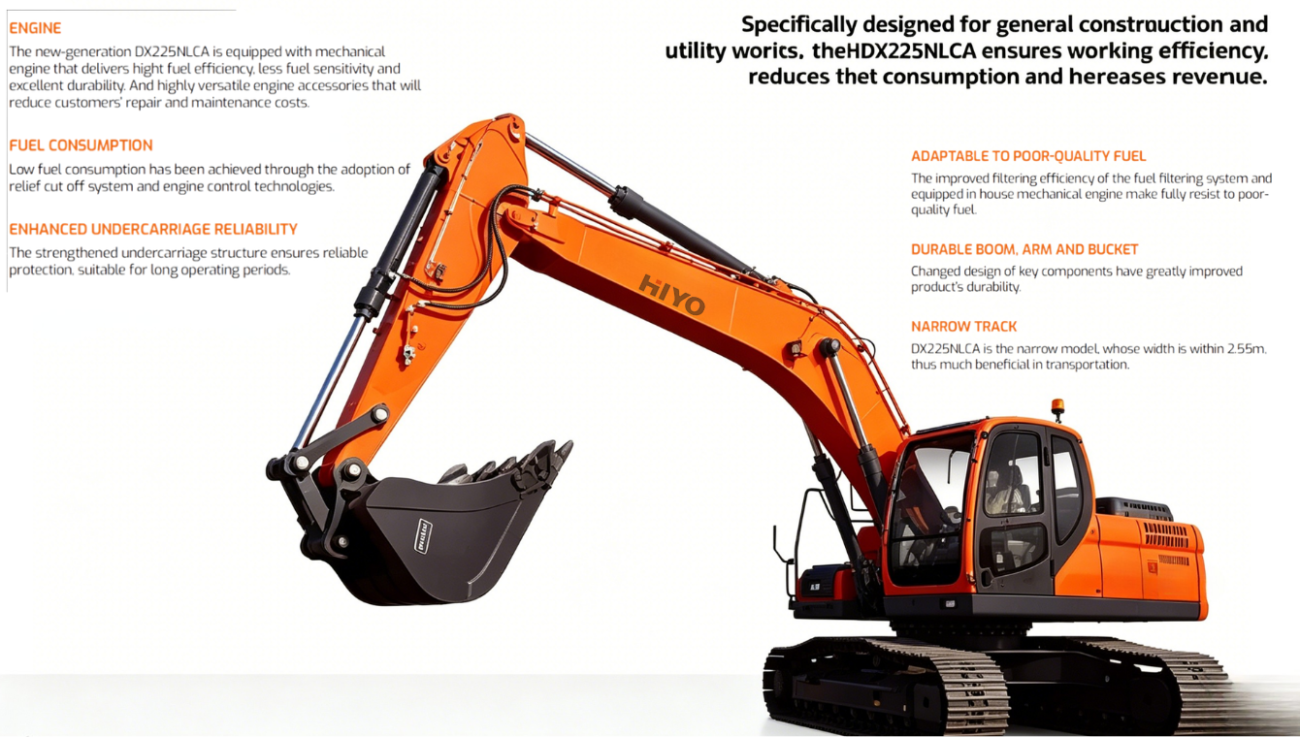

Hiyo HDX225NLCA is a 21-ton medium crawler excavator for earthwork, quarry and construction. It adopts EPOS intelligent hydraulic system and DB58TIS engine, delivering high digging force, low fuel consumption, reinforced durable structure and humanized comfortable cab.
Description
Key Highlights
• Powerful digging force and fast cycle time for medium quarry and general earthmoving heavy tasks
• 15% lower fuel consumption against competitors via EPOS intelligent power matching system
• Upgraded twin large-flow pumps with synchronized engine-hydraulic flow distribution
• Spacious cab equipped with 8-inch touch monitor, full air-condition and optional air suspension seat
• Reinforced boom/arm & integrated undercarriage supporting all-day continuous harsh operation
• 15% lower fuel consumption against competitors via EPOS intelligent power matching system
• Upgraded twin large-flow pumps with synchronized engine-hydraulic flow distribution
• Spacious cab equipped with 8-inch touch monitor, full air-condition and optional air suspension seat
• Reinforced boom/arm & integrated undercarriage supporting all-day continuous harsh operation
Performance Advantages

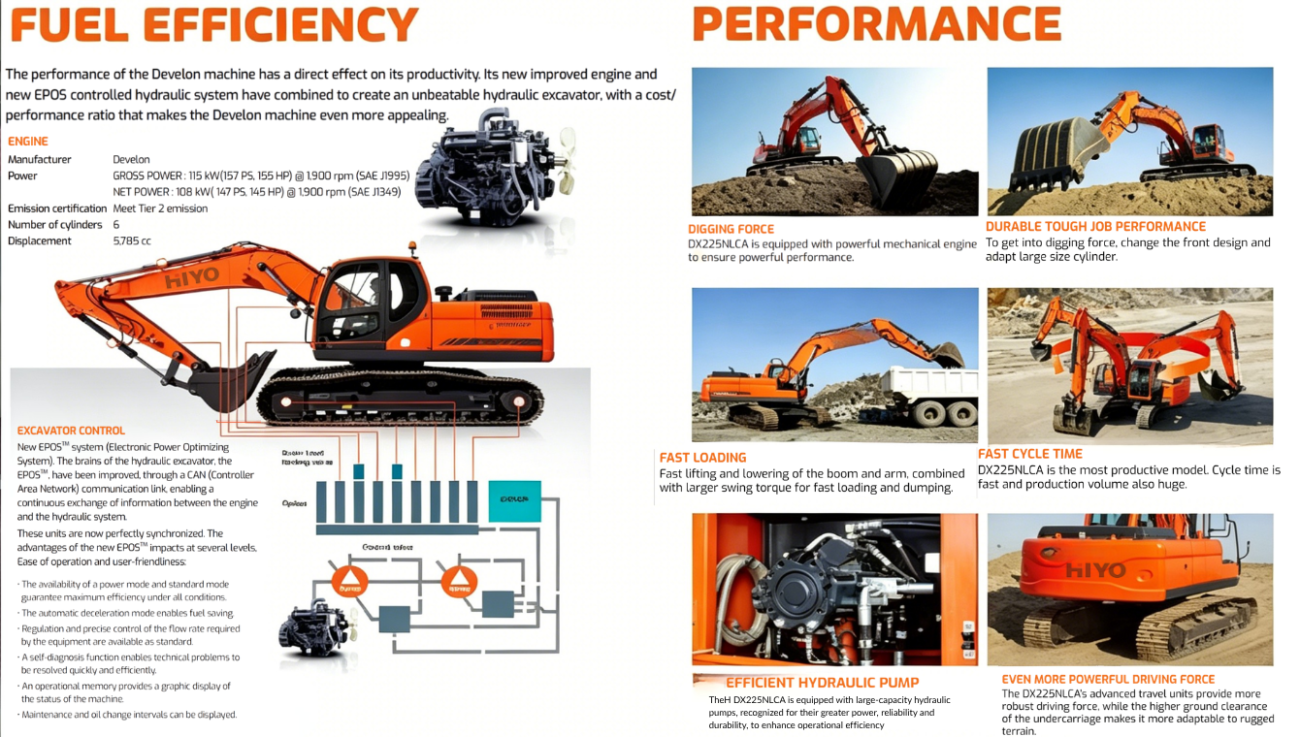

① Powerful Engine
• Model: Hiyo DB58TIS
• Type: Inline 6-cylinder four-stroke turbocharged water-cooled diesel engine
• Rated Power: 115 kW @ 1900 rpm
• Displacement: 5.785 L
• Tier II emission standard, high low-speed torque, stable power output, easy routine maintenance
• Type: Inline 6-cylinder four-stroke turbocharged water-cooled diesel engine
• Rated Power: 115 kW @ 1900 rpm
• Displacement: 5.785 L
• Tier II emission standard, high low-speed torque, stable power output, easy routine maintenance
② Upgraded Hydraulic System
• Main Pump: Dual variable displacement axial piston pumps
• Rated System Pressure: 34.3 MPa
• Max Pump Flow: 2×206.5 L/min• EPOS CAN bus synchronous engine & hydraulic flow optimization
• Quick response, seamless compound movements, dual power & work modes for high efficiency
• Rated System Pressure: 34.3 MPa
• Max Pump Flow: 2×206.5 L/min• EPOS CAN bus synchronous engine & hydraulic flow optimization
• Quick response, seamless compound movements, dual power & work modes for high efficiency

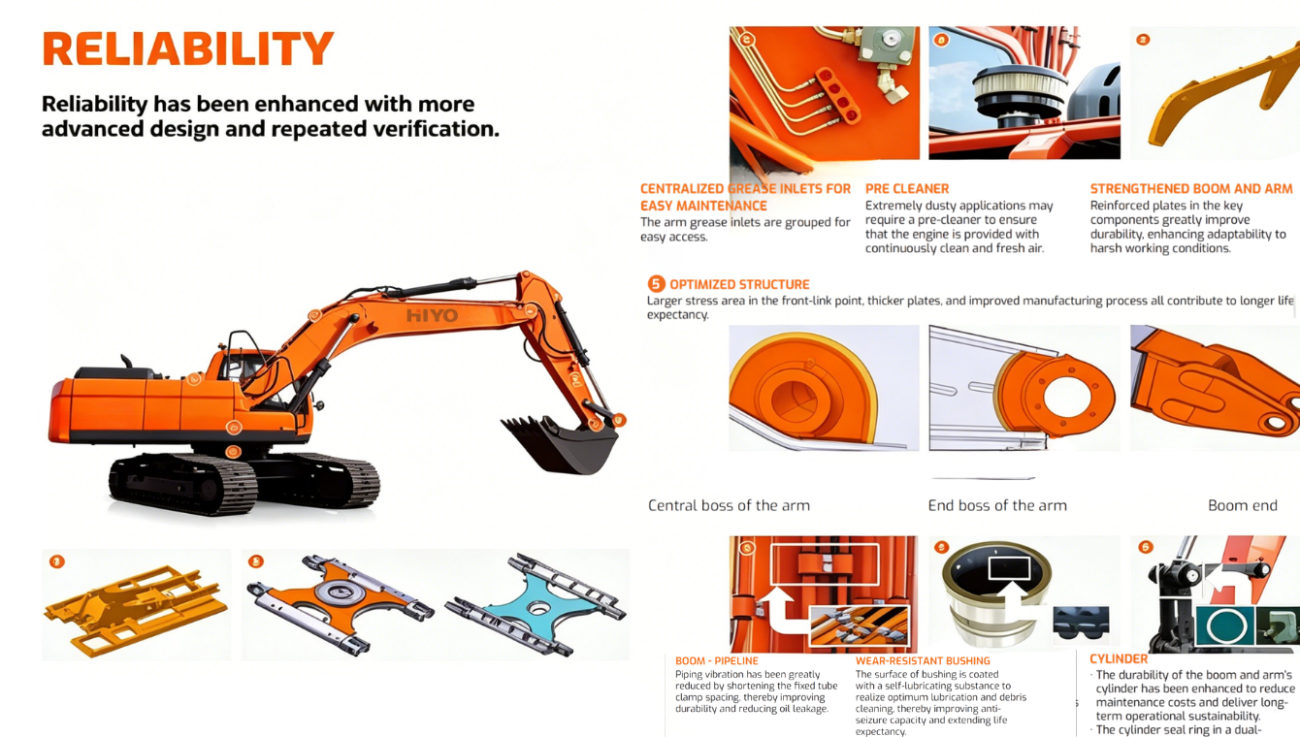

③ Optimized Structure & Heavy-Duty Durability
• Integrated chassis design to eliminate welding stress and structural cracking
• Reinforced thick boom/arm plates with self-lubricating wear-resistant bushings
• Standard bucket capacity: 0.81–1.05 m³, multi-size buckets for diverse materials• Heavy-duty X undercarriage with lifetime lubricated track rollers
• Strengthened hydraulic cylinders with dual-lip sealing for long service life
• Reinforced thick boom/arm plates with self-lubricating wear-resistant bushings
• Standard bucket capacity: 0.81–1.05 m³, multi-size buckets for diverse materials• Heavy-duty X undercarriage with lifetime lubricated track rollers
• Strengthened hydraulic cylinders with dual-lip sealing for long service life

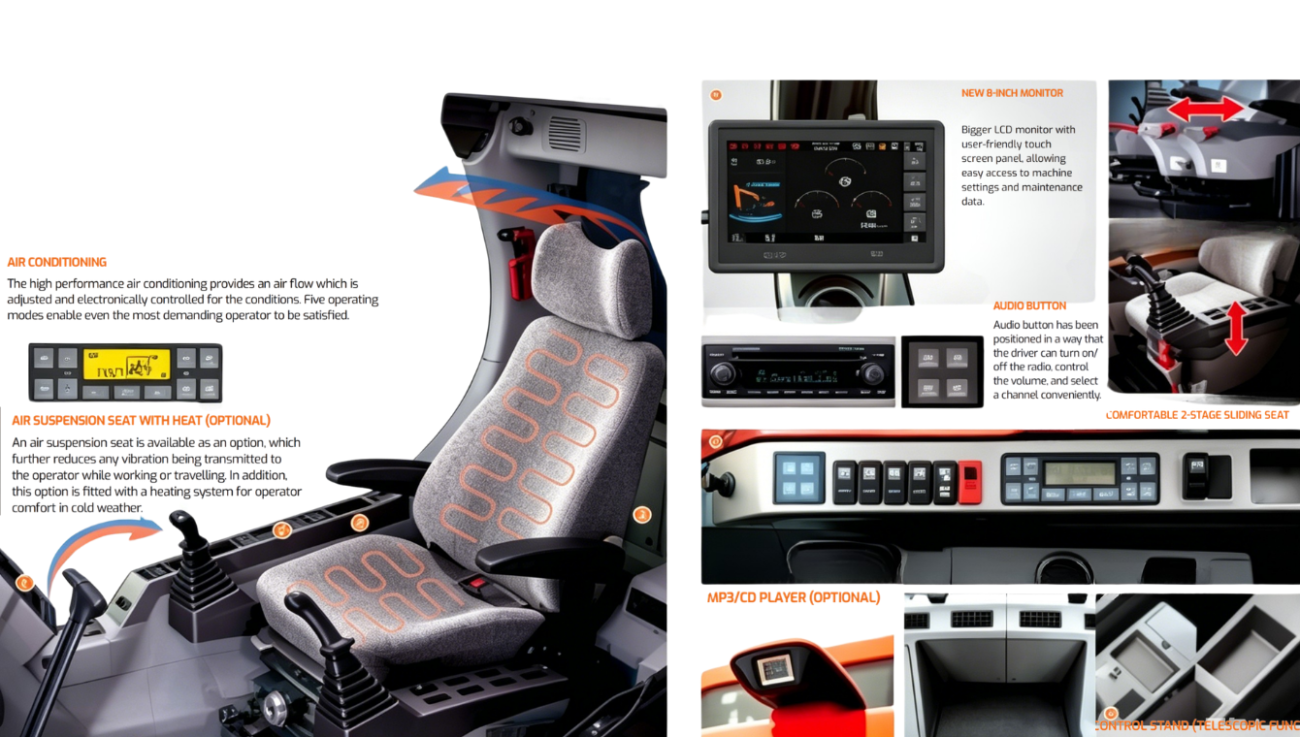

④ Intelligent Luxury Comfort Cab
• 8-inch multi-touch LCD monitor with machine diagnosis & data display
• Optional heated air-suspended sliding adjustable operator seat
• Full electronic climate control with 5 airflow modes, built-in storage & phone box
• Optional rear-view camera, wide panoramic glass to cut blind areas
• Audio control buttons, optional MP3/CD Bluetooth audio system
• Optional heated air-suspended sliding adjustable operator seat
• Full electronic climate control with 5 airflow modes, built-in storage & phone box
• Optional rear-view camera, wide panoramic glass to cut blind areas
• Audio control buttons, optional MP3/CD Bluetooth audio system

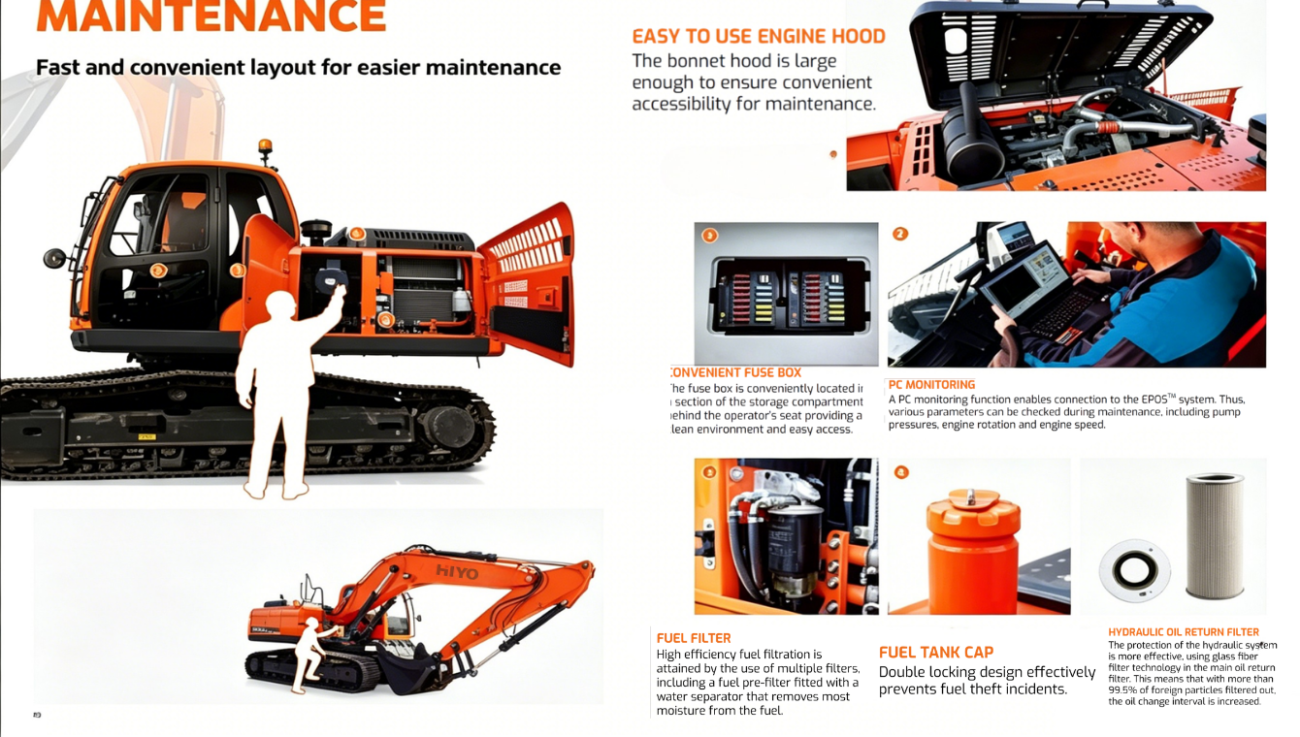

⑤ Easy Maintenance & Reliable Mobility
• Large split engine hood for full access to all filter assemblies
• Centralized grease fittings, double-locked fuel cap & high-efficiency return oil filter
• Two-speed travel mode: 5.4/2.9 km/h with strong traction force
• Standard 500mm track shoes, optional 600mm wide shoes for soft ground
• Dual large cooling assemblies to stabilize hydraulic & engine temperature
• Centralized grease fittings, double-locked fuel cap & high-efficiency return oil filter
• Two-speed travel mode: 5.4/2.9 km/h with strong traction force
• Standard 500mm track shoes, optional 600mm wide shoes for soft ground
• Dual large cooling assemblies to stabilize hydraulic & engine temperature
4. 30 Alternative Names
Hiyo HDX225NLCA Medium Crawler Excavator / Hiyo HDX225 Construction Digger / HDX225NLCA Earthmoving Trackhoe / Hiyo 21 Ton Heavy Duty Excavator / HDX225NLCA Quarry Digging Machine / Hiyo HDX225 General Shovel / HDX225NLCA EPOS Hydraulic Excavator / Hiyo DB58TIS Engine Digger / HDX225NLCA Low Fuel Consumption Excavator / Hiyo 1.05m³ Bucket Trackhoe / HDX225NLCA Fast Cycle Time Machine / Hiyo Reinforced Boom Arm Excavator / HDX225NLCA 8-inch Touch Screen Digger / Hiyo Air Suspension Seat Excavator / HDX225NLCA Tier II Emission Shovel / Hiyo All Day Continuous Digger / HDX225NLCA Two-Speed Travel Excavator / Hiyo Wide View Cab Trackhoe / HDX225NLCA Self-Lubricating Bush Digger / Hiyo Multi-Attachment Excavator / HDX225NLCA Medium Mining Shovel / Hiyo Easy Maintenance Crawler / HDX225NLCA High Swing Torque Digger / Hiyo Dual Pump Hydraulic Machine / HDX225NLCA Soft Ground Stable Excavator / Hiyo General Construction Digger / HDX225NLCA Pre-Cleaner Equipped Shovel / Hiyo Integrated Chassis Excavator / HDX225NLCA Heavy Loading Trackhoe / Hiyo HDX225NLCA Large Scale Earthmover
Complete Machine Technical Specifications
| Category | Item | Unit | Hiyo HDX225NLCA Specification |
|---|---|---|---|
| Basic Specifications | Product Model | / | Hiyo HDX225NLCA |
| Operating Weight | kg | 21000 | |
| Standard Bucket Capacity | m³ | 0.81–1.05 | |
| Main Performance | Travel Speed (High/Low) | km/h | 5.4/2.9 |
| Bucket Digging Force | kN | 116.7 | |
| Arm Digging Force | kN | 123.5 | |
| Engine | Model | / | Hiyo DB58TIS |
| Type | / | Inline 6-cylinder four-stroke turbocharged diesel engine | |
| Number of Cylinders | pcs | 6 | |
| Rated Power | kW/rpm | 115/1900 | |
| Displacement | L | 5.785 | |
| Hydraulic System | Main Pump Model | / | Dual variable displacement axial piston pumps |
| Rated System Pressure | MPa | 34.3 | |
| Max Flow | L/min | 413 | |
| Fluid Capacities | Hydraulic Oil Tank Capacity | L | 200 |
| Fuel Tank Capacity | L | 340 | |
| Engine Oil Capacity | L | 27 | |
| Cooling System Capacity | L | 30 | |
| Travel System | Number of Track Shoes per Side | pcs | 49 |
| Standard Track Shoe Width | mm | 500 | |
| Number of Lower Rollers per Side | pcs | 8 | |
| Number of Upper Rollers per Side | pcs | 2 |
