HYM5552THB 710S

Product Overview:

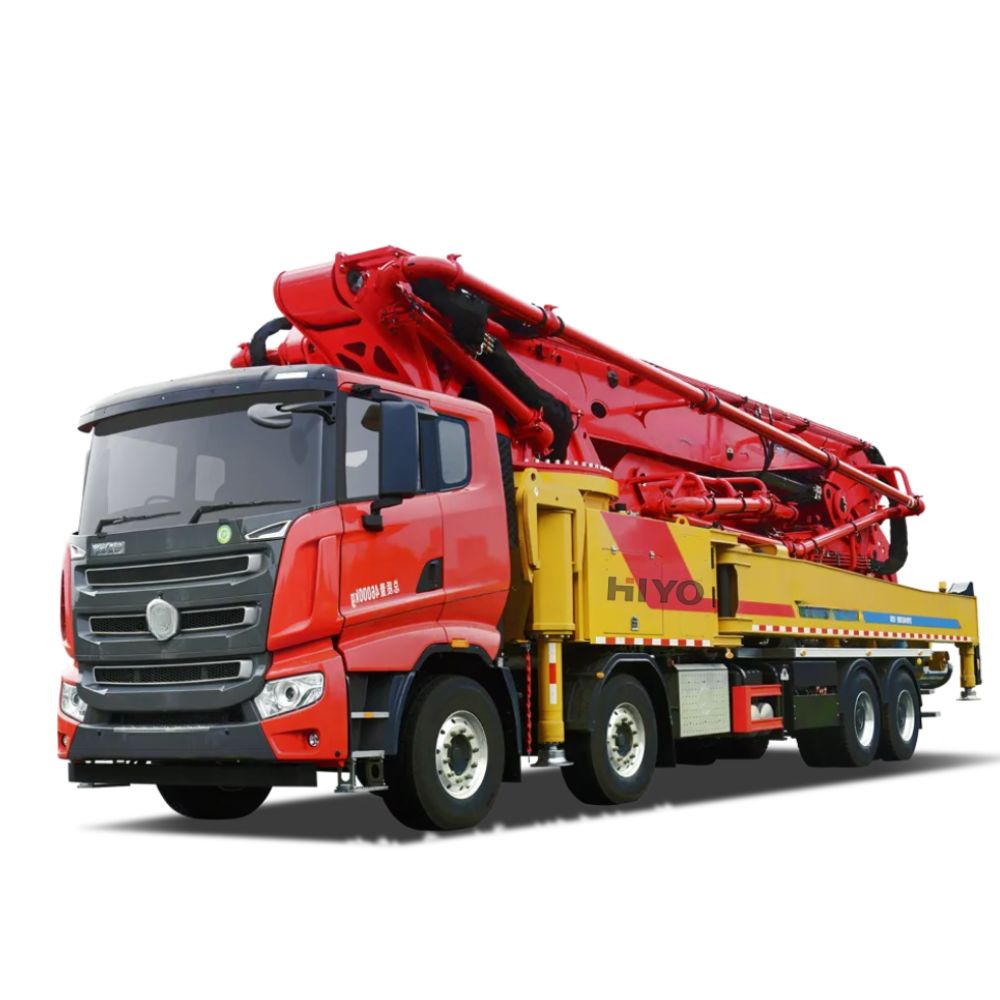

The Hiyo HYM5552THB 710S-8 71m S-series truck-mounted concrete boom pump is a 5-axle heavy concrete delivery vehicle built for large-scale high-rise and infrastructure construction. Equipped with a 7-section multi-angle folding boom, it delivers a maximum vertical reach of 70.2m and horizontal coverage of 63.5m, with 360° full rotary turntable for flexible concrete placing. Adopting S-type high-pressure pumping system, it supports low/high pressure shift, handling manufactured sand concrete without frequent pipe blockage. The exclusive lightweight bridge frame and customized chassis strictly comply with national weight regulations, keeping total vehicle weight under 55 tons for barrier-free highway travel. Integrated digital intelligent system connects chassis and upper pumping unit, pushing real-time operation data to mobile APP for full equipment monitoring. Widely applied in housing, bridge, water conservancy, municipal, wind power and earthwork projects, this boom pump balances high pumping efficiency, road compliance, low fuel consumption and safe construction.

Key Highlight Features:

7-segment multi-angle folding boom, max vertical height 70.2m, end boom reverses 180°, single boom retract time 5 mins faster than peer products

S-class large-displacement high-pressure pumping system, forced mixing & smooth pipeline design, stable pumping for manufactured sand concrete

1. Regulation-compliant lightweight bridge frame, full vehicle gross weight ≤55000kg, no overloading or axle overload, smooth highway accessHiyo D13C6-530E3 engine, power efficiency up 10% while fuel consumption cut by 10%, National VI emission standard, 600L large fuel tankFull digital intelligent linkage system, chassis & pump upper data integrated, real-time data sync to mobile APP for remote equipment management360° full rotary turntable + wide outrigger span (front 12110mm / rear 14990mm), stable full-range horizontal placing, small site footprintDual 750L water tanks + 960L hydraulic oil tank, 125mm standard delivery pipe, 3m end hose, low/high pressure auto switchComplete safety protection: real-time level monitoring, anti-tipping alarm, boom angle limit, wind speed sensing for complex construction sites


   Performance Advantages:

   Compared with other 70m-class concrete boom pumps, Hiyo HYM5552THB 710S-8 has obvious comprehensive advantages in compliance, efficiency and operation cost. First, the 5-axle lightweight chassis solves the industry’s overweight pain point, eliminating road fines and detour costs for cross-city construction. Second, the upgraded S pumping system delivers 180m³/h low-pressure maximum output, accelerating large-volume concrete pouring and shortening project construction cycle. Third, energy-saving engine reduces daily fuel expense by 10%, bringing long-term cost savings for rental and construction companies. Fourth, the flexible reverse-hook end boom cuts required construction space by 5%, adapting to narrow urban and mountain sites. Fifth, full intelligent data monitoring reduces equipment failure rate; large capacity water & hydraulic tanks extend continuous pumping time without frequent refilling. All strengths improve construction speed while lowering overall operating expenditure.

   Technical Specification:

   Overall Dimension & Weight: L16090 × W2550 × H4000mm, total vehicle weight 55000kg, 5-axle chassisBoom Performance: Vertical height 70.2m, horizontal length 63.5m, vertical depth 53.3m, min unfolding height 16.9m, turntable rotation ±360°Pumping System: Low pressure output 180m³/h, high pressure output 125m³/h; low pressure 8.3MPa, high pressure 13MPa; delivery cylinder 260mm × 2100mm, hydraulic system pressure 32MPaTank Capacity: Hydraulic tank 960L, dual water tanks 750L+750L, fuel tank 600L, delivery pipe diameter 125mm, end hose 3mChassis & Power: Hiyo customized chassis, D13C6-530E3 engine, max net power 390kW@1900rpm, National VI emission, max driving speed 90km/hOutrigger Size: Front outrigger span 12110mm, rear outrigger span 14990mm, 7-section folding boom with multi-angle rotationIf you need a compliant high-rise concrete pumping machine for large infrastructure projects, the Hiyo HYM5552THB 710S-8 71m boom pump truck is your top pick. This 5-axle S-series pump truck hits a 70.2m vertical placing height, fully meeting high-rise building, bridge and water conservancy concrete pouring demands. Its lightweight bridge frame strictly controls total weight under 55 tons, eliminating highway overload restrictions and extra transfer costs. The upgraded S-type high-pressure pumping system handles manufactured sand smoothly with 180m³/h max low-pressure output, greatly speeding up mass concrete construction. The energy-saving engine cuts fuel consumption by 10%, while integrated digital APP monitoring lets managers track all running data remotely. The 360° rotary boom with 180° reverse end arm fits narrow urban construction sites, paired with full safety anti-tipping protection. For construction and pump rental firms, this boom pump improves work efficiency and reduces long-term road & fuel costs.The Hiyo HYM5552THB 710S-8 71-meter concrete pump truck stands out among same-height boom pumps thanks to its road-compliant design and intelligent control system. Most 70m-level pump trucks exceed weight limits and face highway access issues, but this model adopts customized 5-axle chassis and lightweight structure to stay within legal axle load limits. Equipped with 7-section folding boom, the unit retracts 5 minutes faster than competitors, shortening site preparation time between shifts. The dual-mode high/low pressure pumping system switches easily for both high-rise long-distance pouring and large-volume ground construction. Hiyo self-developed engine boosts power efficiency by 10% with lower fuel waste, cutting daily operation expenditure. Real-time data push to mobile APP enables fleet managers to monitor pumping volume, fuel consumption and equipment faults anytime. It covers earthwork, municipal, farmland reconstruction and wind power projects, delivering stable and cost-effective concrete pumping performance worldwide.

   Global construction contractors widely choose Hiyo HYM5552THB 710S-8 concrete boom pump for its wide scene adaptability and low overall operation cost. With a maximum vertical placing height of 70.2m and 360° full rotary turntable, it can finish concrete pouring for high-rise residential buildings, long-span bridges and mountain water conservancy projects without auxiliary pipeline extension. The special S pumping pipeline avoids blockage when pumping manufactured sand, a common pain point of ordinary pump trucks. The dual large water tanks and 960L hydraulic oil tank support continuous long-hour pumping without frequent refilling. The small footprint outrigger layout works well in compact urban municipal sites, while the National VI energy-saving engine meets strict global emission standards. All structural parts pass repeated fatigue testing in Hiyo intelligent workshop, lowering breakdown frequency and maintenance downtime for rental fleets.

   rental enterprises.Hiyo specializes in full-series concrete construction machinery including boom pump trucks, mixer trucks and stationary pumps, with mature global sales & after-sales service network. Flagship model HYM5552THB 710S-8 passes international weight and emission certifications, matching construction standards of Southeast Asia, Middle East, Europe and Latin America. Hiyo provides full lifecycle support: on-site maintenance, genuine spare parts supply, operator training and remote equipment diagnosis via APP. All products undergo strict factory performance testing before delivery. Focusing on road-compliant, high-efficiency pumping equipment, Hiyo gains long-term trust from global construction and pump

   Hiyo adopts full digital intelligent production lines for concrete boom pump manufacturing, equipped with robotic welding, CNC cutting and integrated assembly equipment. Core parts of HYM5552THB 710S-8 including 7-section boom, lightweight chassis and S pumping cylinder are processed by high-precision equipment to guarantee structural stability. Every production link follows standardized inspection procedures; finished pumps pass continuous pumping and road simulation tests offline. Constant-temperature dust-free workshop reduces component machining errors, automated logistics shortens production cycle and stabilizes product consistency, laying solid hardware foundation for the pump’s long-term reliable operation.

   Hiyo owns an independent R&D team composed of hydraulic, chassis, power and electronic control engineers, dedicated to solving industry pain points of overweight and low pumping efficiency. The lightweight bridge frame, anti-block S pumping system, 360° intelligent boom control and mobile APP data linkage of HYM5552THB 710S-8 are all self-developed core patents. The R&D lab simulates high-rise, mountain, municipal and manufactured sand construction conditions to conduct long endurance pumping tests, continuously optimizing power saving and passing ability. Independent technological innovation makes this 71m boom pump fully compliant with road weight regulations and greatly improves construction efficiency.

   Hiyo takes road compliance, high construction efficiency and low long-term operation cost as the core design concept for all concrete boom pumps including HYM5552THB 710S-8. The R&D team prioritizes solving real user troubles: highway overload fines, frequent pipe blockage, high fuel consumption and complicated equipment management. The brand rejects useless fancy configurations and only reserves practical functions matching real construction demands. Hiyo believes qualified pumping machinery should cut clients’ comprehensive expenditure and speed up project progress instead of stacking superficial parameters. This user-centered concept guides every design, production and after-sales link of the 71m S-series boom pump.

   operates a large exclusive production base for concrete construction machinery with huge annual output capacity, capable of mass batch production of HYM5552THB 710S-8 71m boom pumps to meet bulk global orders. The base covers complete industrial chains including structural

   part casting, hydraulic assembly, whole machine assembly and full performance testing. Sufficient production capacity shortens customer delivery cycle without long waiting time. Hiyo stores massive genuine spare parts in overseas warehouses to realize fast after-sales replacement. Large-scale manufacturing cuts comprehensive production cost, making this 71m boom pump own stronger price competitiveness among peer high-rise pumping equipment.

   : HYM5552THB 710S-8 reaches 70.2m vertical height via 7-section folding boom, finish high-rise wall, floor slab and core tube concrete pouring, adapt compact urban construction sites.

   360° full rotary boom covers long-span bridge pier and overpass pouring; lightweight compliant chassis freely travels urban roads without weight limit trouble.

   Strong high-pressure pumping system transports concrete to mountain reservoir and dam construction zones; wide outrigger span ensures stable operation on uneven ground.

   Large 180m³/h low-pressure output accelerates mass concrete backfilling for earthworks and farmland reconstruction, flexible transfer between scattered rural sites.

   Reverse 180° end boom adapts narrow wind tower foundation sites; continuous long-hour pumping meets long-distance pipeline concrete pouring demands.
