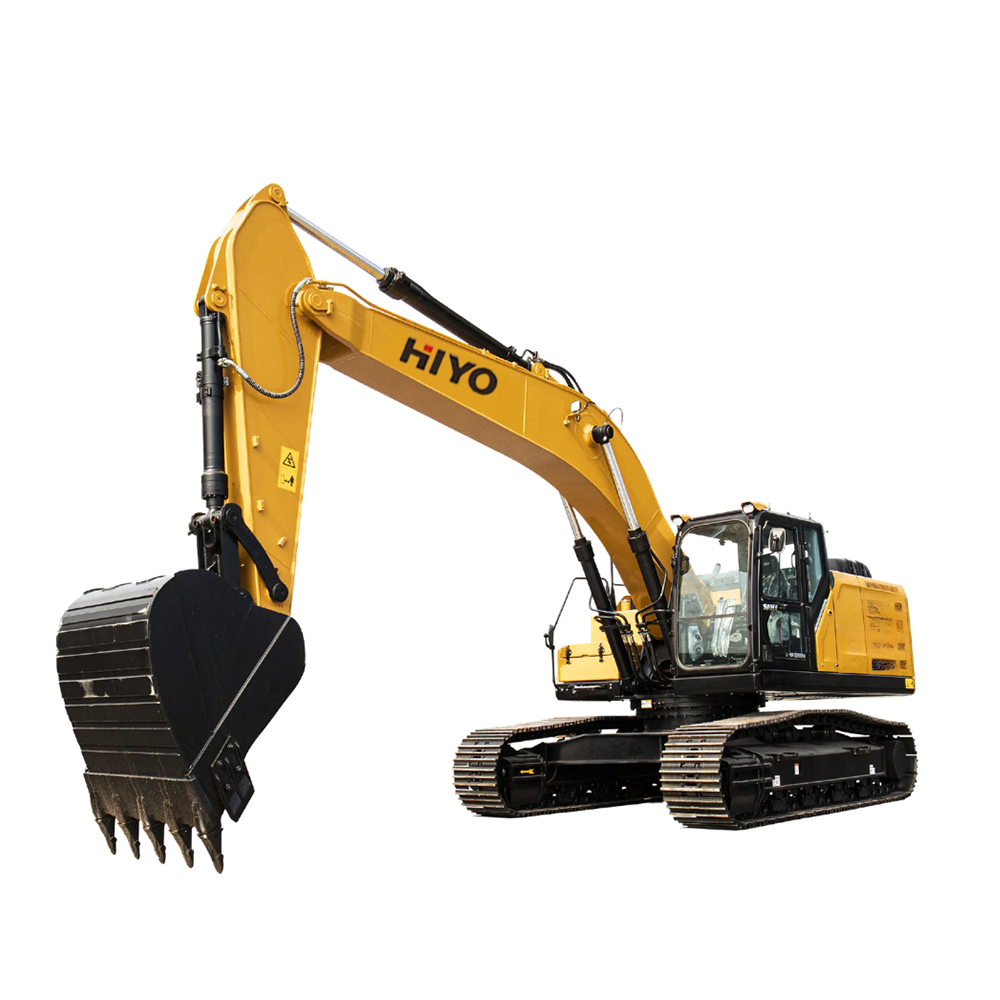

Hiyo HY235H-SA 23-ton Heavy Excavator

 Key Highlight Features

1. Reliable Isuzu 4HK1 power unit: 128kW/2000rpm rated power, National IV emission standard, strong torque reserve, long service life and low failure rate.
2. Kawasaki full electric control hydraulic pump: Low noise, high pressure and high efficiency, greatly improving compound operation smoothness.
3. HOPE optimized hydraulic circuit: Reduce oil return loss, match power output with real-time load to lower fuel consumption effectively.
4. Precision urea injection system: Control fuel injection volume accurately, cut particle emission and reduce daily fuel cost.
5. Replaceable bucket configuration: Standard 1.35m earth bucket, optional rock bucket, realize one bucket for one working condition.
6. Upgraded premium C12 cabin: Full interior optimization, shock absorption seat, wide vision and low vibration for long shift operation.
7. 10-inch intelligent HD touch screen: Higher system integration, built-in WLAN for remote machine monitoring and OTA upgrade.
8. Strong heavy-duty chassis: 600mm wide track shoe, 442mm minimum ground clearance, 70% climbing capacity for mine slope roads.
9. Compact swing layout: 290mm tail swing radius and 3662mm minimum turning radius, flexible in narrow municipal and tunnel spaces.

Performance Advantages

1. Super powerful digging force: 158kN bucket breakout force and 124kN arm breakout force, easily crush hard rock and complete heavy stockpile loading.
2. Balanced traveling performance: Max travel speed 5.6km/h, low speed 3.5km/h, stable movement on muddy mine slopes with 51kPa ground pressure.
3. Efficient energy-saving hydraulic system: HOPE dynamic load matching cuts fuel consumption by 10% compared with conventional hydraulic medium excavators.
4. Wide working coverage: Max digging depth 6450mm and max digging radius 9745mm, satisfy deep foundation and long-distance material transport.
5. Stable rotary performance: 11.5rpm swing speed, smooth rotation without jitter during mass earth and stone shifting.
6. Low comprehensive maintenance cost: Durable engine and hydraulic components, extended maintenance cycle, less spare parts replacement frequency.
7. Strong terrain adaptability: 35° maximum climbing angle, passable on rugged mine, quarry and mountain construction roads.
8. Small turning radius design: Avoid wall collision in narrow municipal trenches and underground mine roadways, improve construction safety.
9. High hourly production capacity: Large 1.35m bucket cooperates with strong digging force to raise daily earth and stone output greatly.

Technical Specification

Core Machine Parameters

Operating Weight: 23000kg

Standard Bucket Capacity: 1.35m³

Rated Engine Power: 128kW/2000rpm (Isuzu 4HK1)

#Transport Overall Dimensions

Total Transport Length: 9635mm | Total Width: 2980mm | Transport Total Height: 3100mm

Cab Top Height: 3255mm | Upper Frame Width: 2813mm

Standard Track Shoe Width: 600mm | Total Track Length: 4446mm

Track Ground Contact Length: 3640mm | Track Gauge: 2380mm

Minimum Ground Clearance: 442mm | Tail Swing Radius: 2900mm

Core Performance Index

Travel Speed (High/Low): 5.6 / 3.5 km/h | Swing Speed: 11.5 rpm

Climbing Capacity: 70% (35°) | Ground Pressure: 51 kPa

Bucket Digging Force: 158kN | Arm Digging Force: 124kN

Working Range Parameters

Max Digging Height: 9470mm | Max Dumping Height: 6735mm

Max Digging Depth: 6450mm | Max Digging Distance: 9745mm

Minimum Turning Radius: 3662mm | Max Height At Min Swing Radius: 7600mm

Heavy Mining & Stone Excavation Flagship

Hiyo HY235H-SA is a 23-ton heavy-duty medium excavator tailor-made for mining and hard stone construction sites, equipped with reliable Isuzu 4HK1 National IV engine and Kawasaki HOPE full electronic control hydraulic system. It delivers 158kN bucket digging force with a large 1.35m standard bucket, and an optional rock bucket is available for severe rock stripping and ore excavation. The intelligent urea injection system optimizes fuel combustion to cut operation expenses, while upgraded hydraulic circuits reduce power loss and lift work efficiency. With 51kPa ground pressure and 70% climbing capacity, the machine runs stably on slippery mine slopes and rugged quarry ground. Compact swing design enables flexible operation in narrow underground mining roadways. The fully optimized C12 cabin with 10-inch WLAN touch screen eases operator fatigue during long-hour mining shifts. This multi-functional digger fits earthwork, stone, open-pit mine and municipal engineering, earning consistent praise from global mining contractors for strong power and low failure rate.

Automated Production Workshop for Hiyo HY235H-SA Heavy Digger

Hiyo builds exclusive large standardized workshops for heavy medium excavators, equipped with independent dedicated assembly lines for HY235H-SA 23-ton crawler excavators. The workshop adopts robotic automatic welding, precision CNC machining and digital hydraulic assembly processes to control component matching accuracy strictly. Core engine and hydraulic components are inspected one by one before assembly to avoid hidden quality risks. Each assembly station arranges full-time quality inspectors to track tightness of hydraulic pipelines and structural welding joints. After assembly, all finished machines pass 3-hour continuous heavy-load running tests to check digging force, traveling and rotary stability. Clean, orderly production environment reduces assembly errors, supporting stable mass shipment of HY235H-SA to fulfill global bulk heavy machinery orders on schedule.
