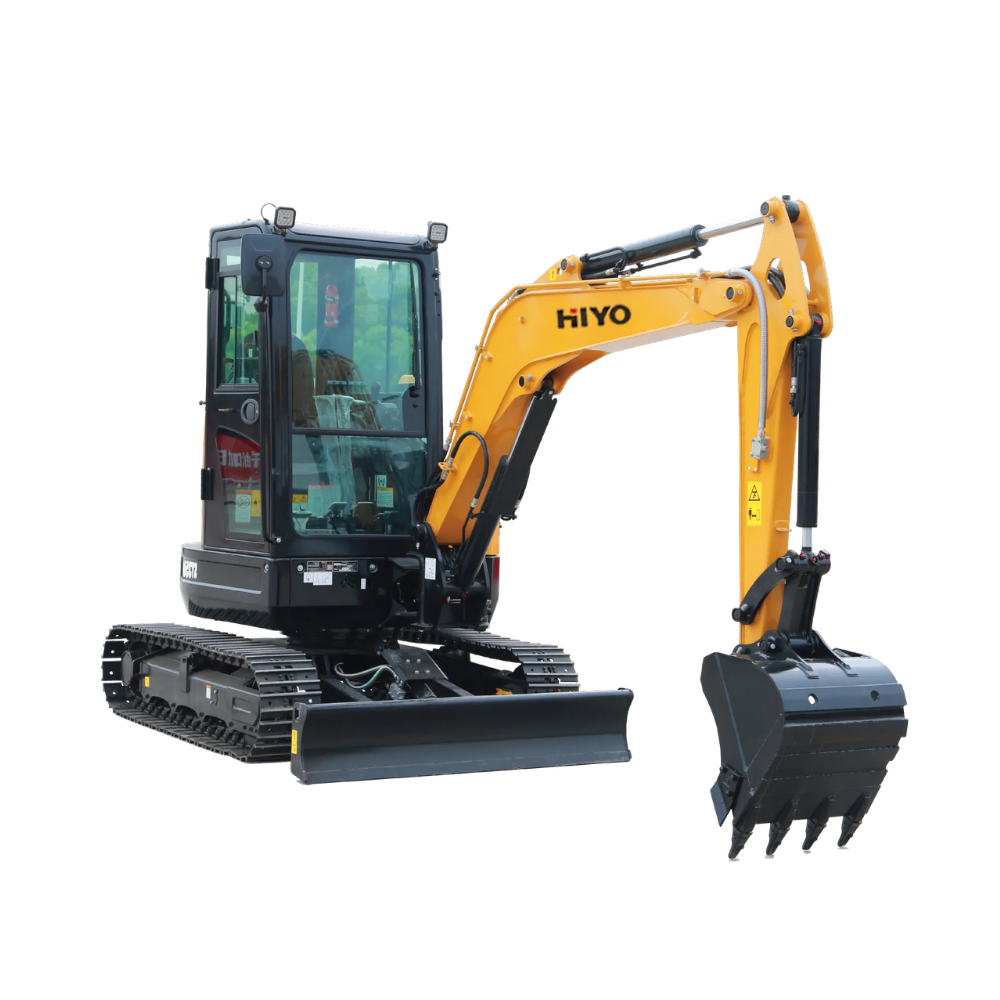

Hiyo HY35U Zero Tail Mini Excavator

Key Highlight Features

1. Awardwinning zerotail swing design, tail never exceeds tracks, safe work beside walls and narrow passages
2. Imported Yanmar 3TNV88 engine, meets China Stage IV & EU emission standards, low noise and low fuel consumption
3. Intelligent loadsensing hydraulic system, smooth compound movements, low pressure loss and high operation efficiency
4. Standard doubleacting auxiliary hydraulic circuit, compatible with breaker, grapple, auger for multiscene jobs
5. 300mm wide rubber track, ground pressure only 33–35kPa, no damage to lawns, bricks and green plants
6. Fully enclosed airconditioned cabin with ergonomic suspended seat, effectively relieve longhour operation fatigue
7. Reinforced robotwelded frame and wearresistant bucket teeth, extend whole machine service cycle
8. Dual travel speed (2.4/4.2km/h), switch freely between precise trenching and fast site transfer
9. Centralized side maintenance cover, all filters and oil ports within easy reach for quick daily inspection
10. Offset boom function, convenient edge digging against walls, greatly boost construction efficiency

Performance Advantages

Powerful digging output: 30.4kN bucket breakout force and 18.2kN arm digging force, easily excavate hard soil and small gravel

Superior climbing capacity: Max 58% gradeability, stable walking on sloped farmland and uneven construction ground

Fuelsaving power matching: Engine and hydraulic pump perfectly matched, fuel consumption 9.2% lower than sameclass competitors

Zero tail balance design, low gravity center, effectively prevent tipping during side digging and heavy load operation

Stable 10rpm swing speed, uniform digging depth for pipeline trenching and drainage construction

Low ground pressure design, exclusive for green projects without damaging vegetation and pavement

Wide scene adaptability: 54 field construction cases prove stable performance in agriculture, landscaping and municipal worksRobust chassis structure: 4 support rollers and 1 top roller per side, effectively avoid track jamming and reduce wear

Technical Specification

1. Model: Hiyo HY35U Zero Tail Mini Excavator
2. Operating Weight: 3835kg
3. Standard Bucket Capacity: 0.12m³
4. Engine Model: Yanmar 3TNV88
5. Rated Power / Rotational Speed: 20.2kW / 2200rpm
6. Max Torque: 104.5N·m; Displacement: 1.642L
7. Travel Speed: 2.4km/h (low) / 4.2km/h (high)
8. Swing Speed: 10rpm; Max Gradeability: 58%
9. Ground Pressure: 33–35kPa; Track Width: 300mm
10. Bucket Digging Force: 30.4kN; Arm Digging Force: 18.2kN
11. Chassis Parts: 4 support rollers per side, 1 top roller per side, 44 track plates per side
12. Fluid Volume: Fuel tank 50L, Hydraulic tank 40L, Engine oil 6L, Radiator 8L
13. Final Drive Oil Capacity: 0.6L per side, total 1.2L

Hiyo Large Intelligent Production Base & Mass Production Strength

Hiyo runs a standardized intelligent machinery manufacturing base specializing in mini excavator independent R&D and mass production. Automatic cutting, robot welding and digital assembly lines guarantee uniform quality of every HY35U unit. The factory implements fullprocess quality inspection: raw material testing, semifinished calibration and finished machine 2hour fullfunction trial run before delivery.

Largebatch production cuts manufacturing costs and delivers competitive factory prices to global buyers. We maintain sufficient spare parts inventory to support overseas aftersales service. All HY35U zero tail micro diggers are produced on exclusive micro excavator production lines with stable monthly output, capable of bulk orders from landscaping, municipal and agricultural dealers worldwide. Large factory scale ensures stable supply and consistent machine performance for all international clients.
