HIYO HY60 Hydraulic Crawler Excavator

Official English Product Brochure (PDF Ready Content)

Cover Page

HIYO HEAVY INDUSTRY CO., LTD.HY60 Hydraulic Crawler ExcavatorHigh Efficiency · Low Fuel Consumption · Strong Power

1. Product Overview

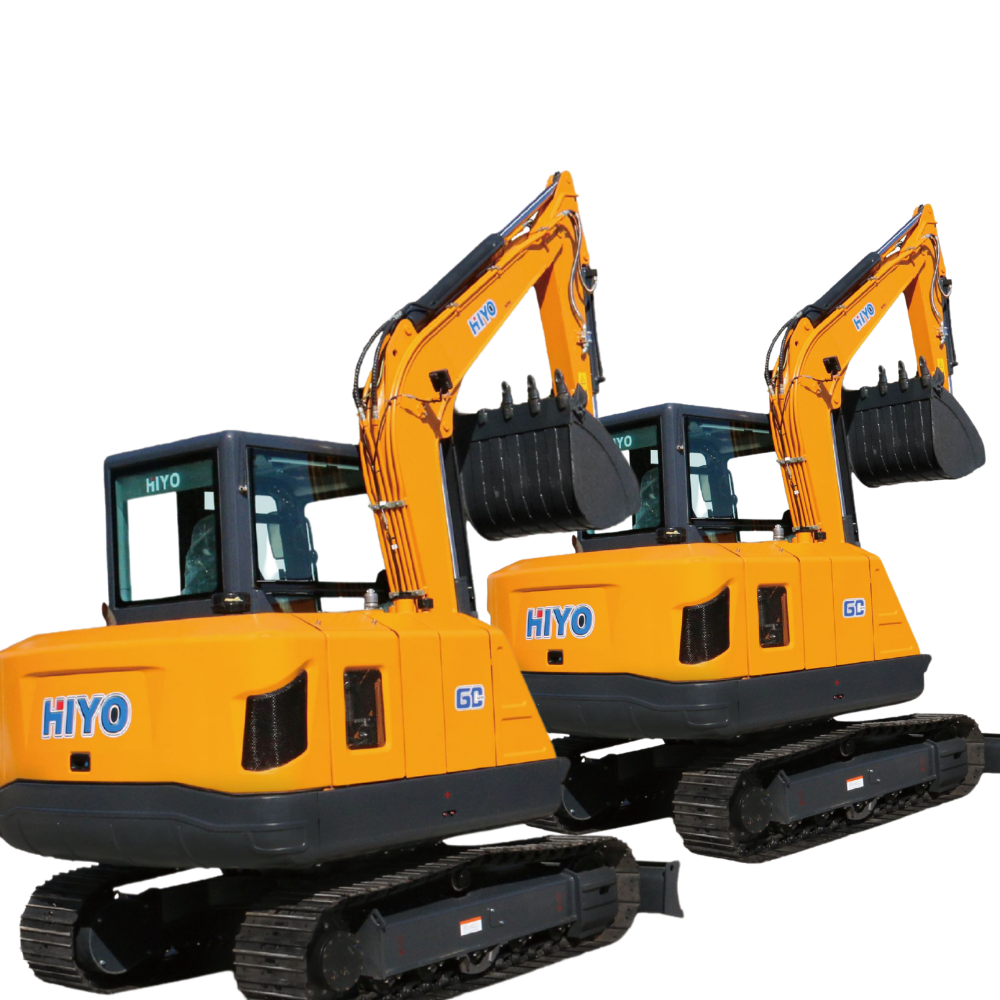

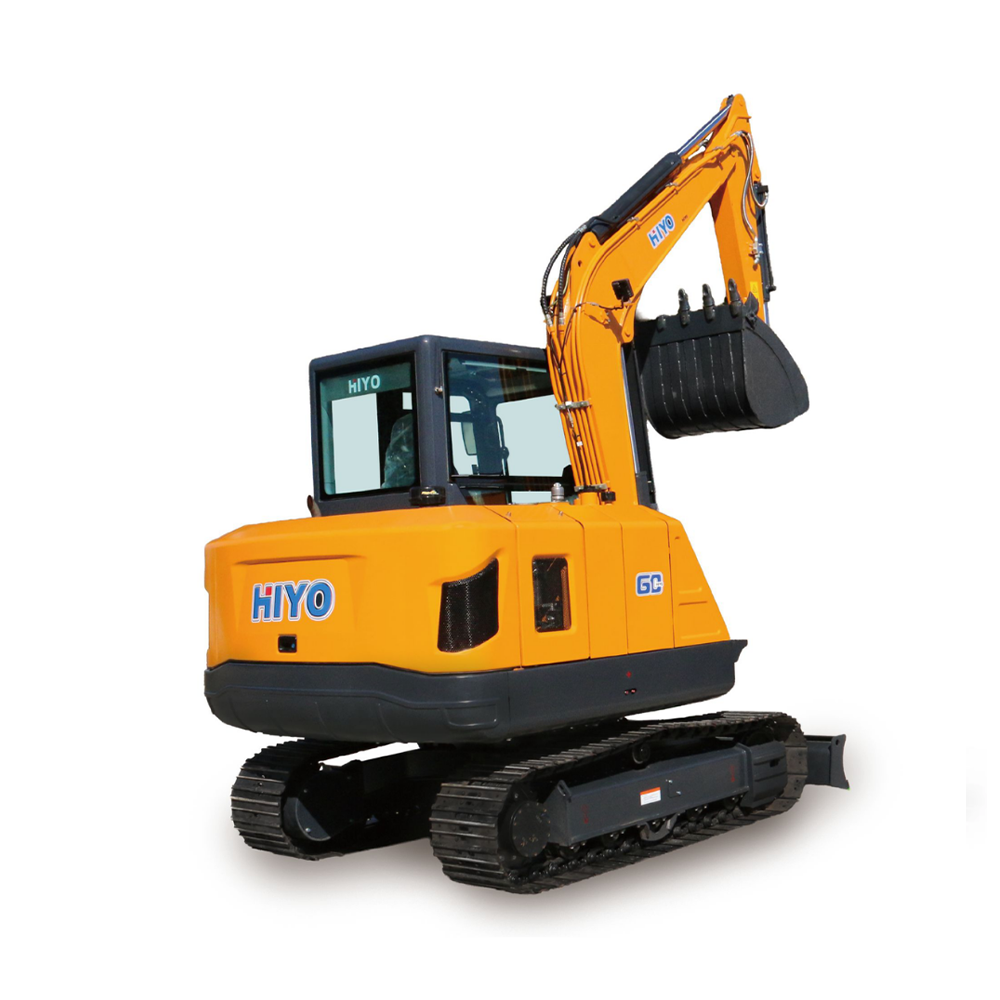

The HIYO HY60 is a 6-ton small hydraulic crawler excavator designed through big data analysis, engineering mechanics optimization, and fluid dynamics simulation.It features high working efficiency, low fuel consumption, strong digging force, and stable performance for multiple working conditions.Key Highlights

• High efficiency & strong digging force
• Low fuel consumption (17% more economical)
• Upgraded hydraulic system
• Comfortable intelligent cab
• Large fuel tank for long working hours

2. Performance Advantages

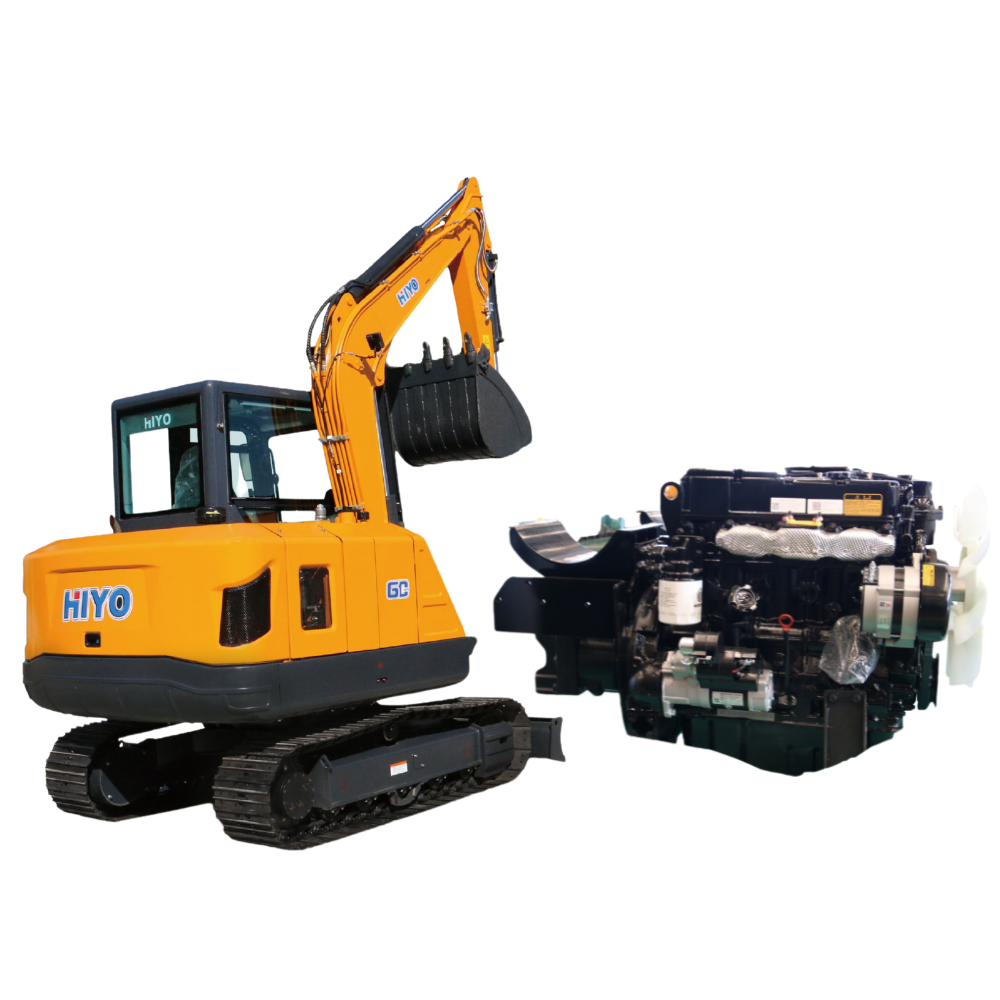

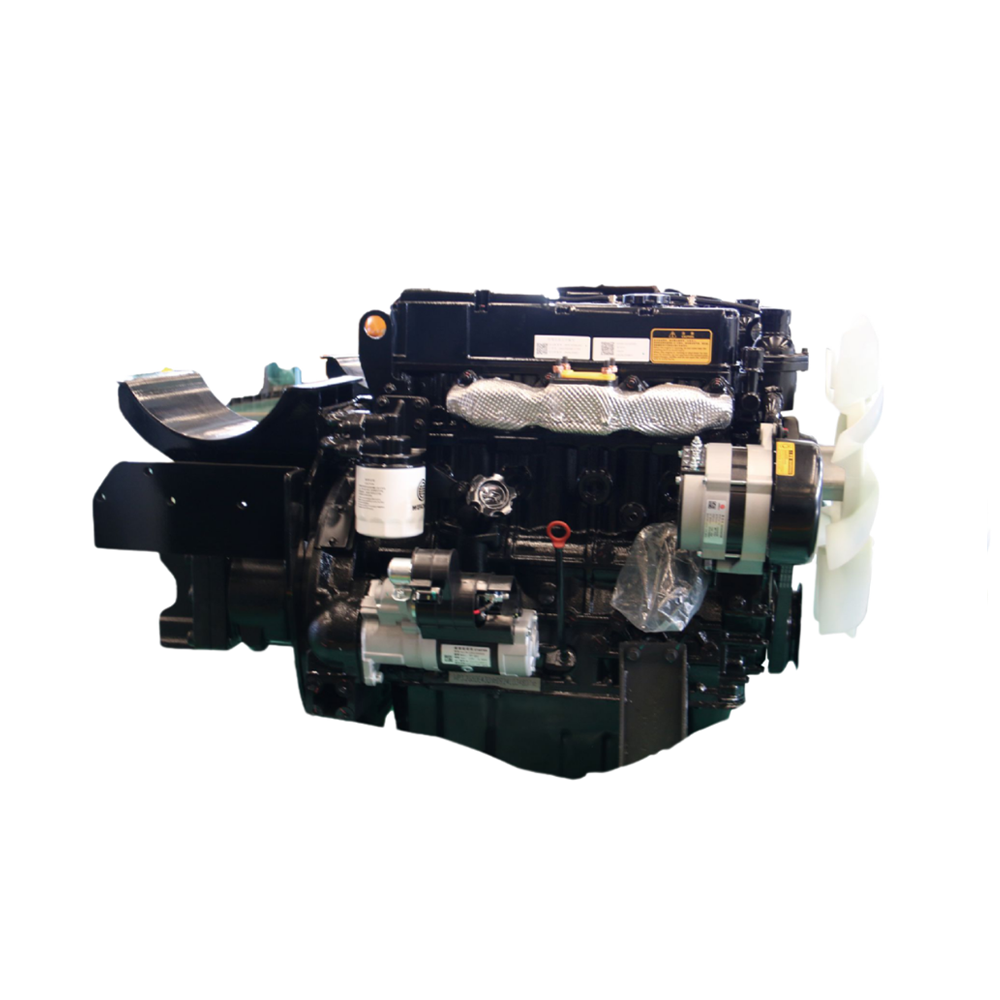

① Powerful Engine

• Model: WP3.2G50E430
• Type: 4-cylinder water-cooled electronic injection
• Rated power: 36.8 kW @ 2200 rpm
• Displacement: 3.17 L
• Stable output & easy maintenance

② Upgraded Hydraulic System

• Main pump: FMP80BPS
• Rated pressure: 32 MPa
• Max flow: 168 L/min
• Main valve: FCV16AL43HS9 (120 L/min)
• Fast response, smooth operation, high efficiency

③ Optimized Structure & Durability

• Optimized stress distribution design
• Fuel economy improved by 17%
• Digging force increased by 15%
• Patented wear-resistant bucket
• Bucket capacity: 0.35 m³
• Fuel tank: 140 L for long-time working

④ Intelligent Comfort Cab

• Intelligent touch display (Bluetooth, A/C, USB, radio)
• Premium car-grade air conditioning system
• Panoramic view with minimized blind spots
• Keyless one-button start
• Ergonomic seat & eight-button control panel
• LED reading light & cup holder



Item	Specification	Unit
Model	HY60	–
Standard Bucket Capacity	0.35	m³
Travel Speed	4.3 / 2.3	km/h
Ground Pressure	33	kPa
Bucket Digging Force	45.6	kN
Max Traction Force	61.5	kN
Max Digging Radius	5770	mm
Max Unloading Height	3930	mm
Min Swing Radius	1575	mm
Overall Height	2650	mm
Track Length	2540	mm
Hydraulic Oil Tank	95	L
Fuel Tank	140	L
Coolant Capacity	40	L
