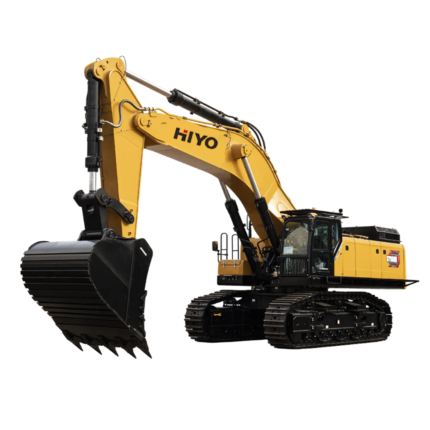

Hiyo HY980H Super Large Mining Excavator

Maintenance-Free Emission System & Fuel-Saving Hydraulics

Hiyo HY980H super large mining excavator solves the biggest pain points of traditional large mining machines: complicated aftertreatment maintenance and high fuel consumption. Adopting Scania DC16 engine without DPF/SCR structure, it requires no urea supply or periodic regeneration, greatly reducing downtime and spare parts expenditure for mining fleets. Self-developed ICT integrated control technology realizes real-time linkage of engine, main pump and main valve, cutting hydraulic overflow loss and lowering unit ore fuel consumption. Serialized multi-size buckets freely switch between coal mine soft soil and hard metal ore stripping tasks. The 1180L large fuel storage reduces refueling frequency, and heavy-duty wide track shoes prevent sinking on wet open-pit ground. Ultra-thick boom and arm steel plates extend service life under harsh quarry abrasion. With powerful 495kN digging force and high hourly loading volume, HY980H becomes the preferred super heavy equipment for large open-pit mining enterprises worldwide.

Key Highlight Features

1. Scania DC16 V8 industrial engine: 16.4L displacement, 574kW/2100rpm, max torque 3260N·m, abundant power reserve for super heavy mining loads.
2. Simplified emission structure: No DPF/SCR aftertreatment, no urea consumption, remove regular regeneration maintenance workload.
3. Full electronic control large-displacement hydraulic system: Pressure cut-off main pump, large bore parallel main valve, low pressure loss and high composite action coordination.
4. ICT integrated matching tech: Intelligent linkage of engine, pump and valve, reduce invalid power loss and lower overall fuel consumption.
5. Serialized multi-size buckets: Standard 6.5m³ bucket, optional 5.5/7/8m³ buckets to match coal, iron ore and stone working conditions.
6. Super heavy-duty chassis: 650mm wide thick track shoes, 9 track rollers per side, strong bearing capacity on rough mine ground.
7. Large capacity fuel tank: 1180L fuel storage, extend continuous operation time without frequent refueling.
8. Mine-strengthened working device: Ultra-thick boom & arm steel plate, high impact resistance for long-term ore stripping and loading.

Performance Advantages

1. Super powerful digging capacity: 495kN bucket breakout force, 469kN arm breakout force, one-shot full bucket for large mining truck loading.
2. Ultra-low maintenance cost: Abandon urea and DPF maintenance, only simple regular oil & filter replacement required.
3. Efficient hydraulic matching: ICT intelligent control cuts overflow loss by over 12%, lower hourly fuel consumption during mass mucking.
4. Long continuous operation cycle: 1180L large fuel tank supports whole-day mining production without mid-shift refueling.
5. Stable off-road performance: 132kPa ground pressure, 35° climbing ability, smooth traveling on uneven open-pit mine slopes.
6. High loading efficiency: Max 8m³ oversized bucket greatly reduce loading cycles and boost mine daily output.
7. Reliable continuous operation: Heavy-duty structural parts pass tens of thousands hours open-pit abrasion impact tests.
8. Low failure risk hydraulic system: Large-diameter pipeline reduces blockage risk, easy access for daily inspection and maintenance.

Technical Specification

Core Machine Parameters

Operating Weight: 95000kg

Standard Bucket Capacity: 6.5m³ | Optional: 5.5/7/8m³

Rated Engine Power: 574kW/2100rpm

Engine Model: Scania DC16 V8 4-Stroke Direct Injection

Engine Displacement: 16.4L | Max Torque: 3260N·m/1400rpm

Oil & Cooling Capacity

Fuel Tank: 1180L | Engine Oil Volume: 50L | Radiator Capacity: 82L

Final Drive Single Volume: 18L ×2

Chassis Configuration

Standard Track Shoe Width: 650mm

Track Rollers Per Side:9 | Carrier Rollers Per Side:3

Core Performance Index

Travel Speed (High/Low): 4.3 / 3.0 km/h | Swing Speed:7 rpm

Climbing Capacity:70%(35°) | Ground Pressure:132kPa

Bucket Digging Force:495kN | Arm Digging Force:469kN

Hiyo Heavy Industry: Professional Super Large Mining Excavator Manufacturer

Hiyo Heavy integrates independent R&D, automated heavy-duty production, global mineral market sales and full mining after-sales service, taking HY980H 95-ton super excavator as top flagship. We independently develop ICT intelligent hydraulic matching tech and complete mine-strengthened structural design, matching imported Scania DC16 power without external core technical reliance. All super thick boom, arm and heavy chassis are self-manufactured under strict mine abrasion standards. Every HY980H undergoes thousands hours open-pit overload simulation tests before delivery. We supply super heavy diggers for coal, metal and quarry projects globally, establishing long-term cooperation with large mineral groups. Standard full-load offline inspection eliminates factory defects for overseas mining clients.
