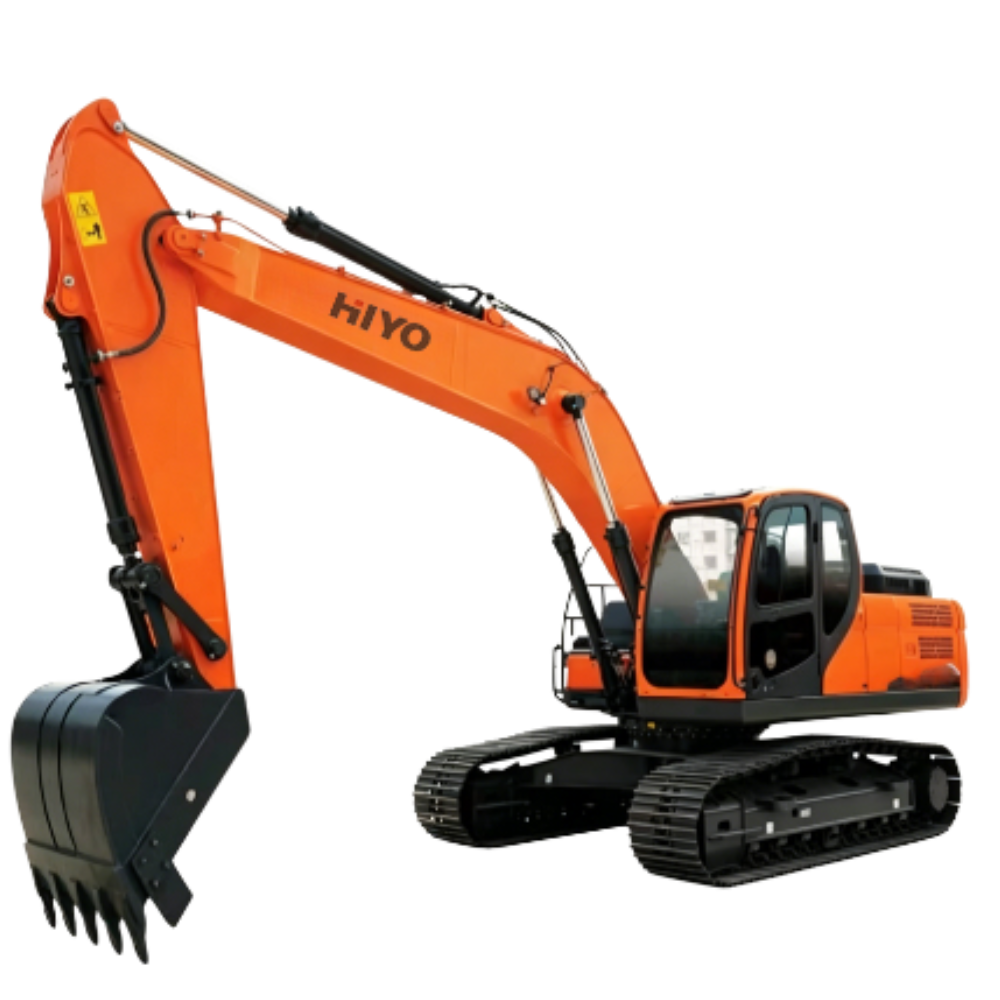

Hiyo HDX210 Medium Crawler Excavator
Product Overview
Hiyo HDX210 is a 20-ton medium crawler excavator powered by a 4-cylinder Weichai engine delivering 129kW. Equipped with NFC load-sensing hydraulic system, reinforced HD front attachments, SPC3 intelligent power control and a comfortable sealed cab, it offers strong performance, fuel efficiency and durability for diverse construction tasks.
Description
Key Highlights
• Class-leading 129kW 4-cylinder engine matching 6-cylinder power output for heavy-duty productivity
• 15% lower fuel consumption via SPC3 intelligent power control and multiple working modes
• Upgraded hydraulic system with 8% higher flow rate and optimized NFC load control
• Spacious sealed panoramic cab with touch display, USB charging and low noise design
• Reinforced HD boom & arm plus wider undercarriage supporting long-hour continuous operation
• Easy ground-level maintenance with centralized greasing and large-opening engine hood
• 15% lower fuel consumption via SPC3 intelligent power control and multiple working modes
• Upgraded hydraulic system with 8% higher flow rate and optimized NFC load control
• Spacious sealed panoramic cab with touch display, USB charging and low noise design
• Reinforced HD boom & arm plus wider undercarriage supporting long-hour continuous operation
• Easy ground-level maintenance with centralized greasing and large-opening engine hood
Performance Advantages
① Powerful Engine
• Model: Weichai WP4.6N
• Type: Inline 4-cylinder four-stroke turbocharged diesel engine
• Rated power: 129 kW @ 2000 rpm
• Displacement: 4.6 L

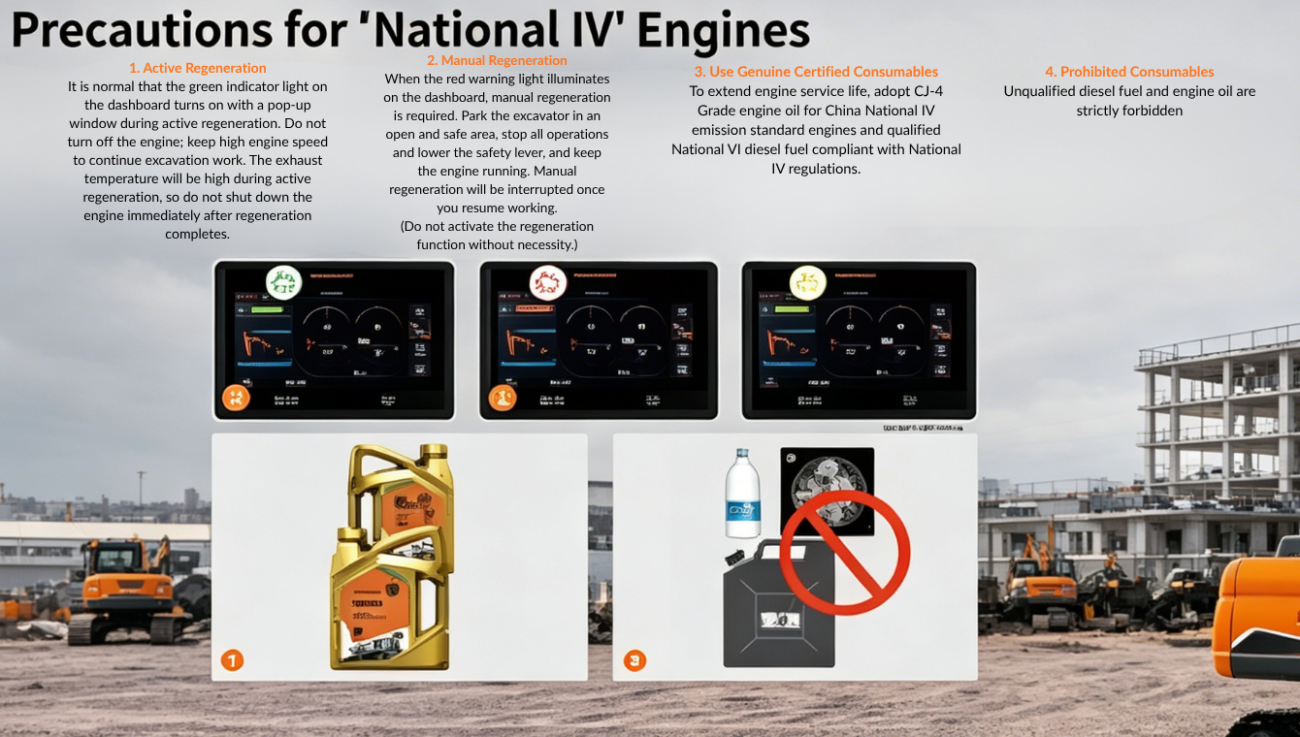

• China Stage IV emission with EGR+DPF aftertreatment, no urea required, optimized regeneration logic for maximum uptime
• Type: Inline 4-cylinder four-stroke turbocharged diesel engine
• Rated power: 129 kW @ 2000 rpm
• Displacement: 4.6 L
• China Stage IV emission with EGR+DPF aftertreatment, no urea required, optimized regeneration logic for maximum uptime
② Upgraded Hydraulic System
• Main pump: Imported customized axial piston pumps
• System type: NFC load control negative control system
• Max pump flow: 2 × 207 L/min (8% higher than previous generation)
• Large-displacement imported main control valve with DEVELON engineer calibration
• SPC3 intelligent power control system automatically matches power output to load conditions
• P+/P/S/E multiple working modes for flexible fuel efficiency adjustment
• System type: NFC load control negative control system
• Max pump flow: 2 × 207 L/min (8% higher than previous generation)
• Large-displacement imported main control valve with DEVELON engineer calibration
• SPC3 intelligent power control system automatically matches power output to load conditions
• P+/P/S/E multiple working modes for flexible fuel efficiency adjustment
③ Optimized Structure & Heavy-Duty Durability
• 5.6m boom + 2.9m HD arm combination with abundant working radius
• Heavy-duty reinforced front attachments with 3D simulation optimized key structures
• Standard 0.92 m³ large bucket with optimized shape for better loading performance
• Wider lower frame (2988mm) for enhanced stability during operation
• Self-lubricating coated bushings and centralized greasing system at boom base
• Original customized travel & swing motors proven by long-term field validation
• Heavy-duty reinforced front attachments with 3D simulation optimized key structures
• Standard 0.92 m³ large bucket with optimized shape for better loading performance
• Wider lower frame (2988mm) for enhanced stability during operation
• Self-lubricating coated bushings and centralized greasing system at boom base
• Original customized travel & swing motors proven by long-term field validation

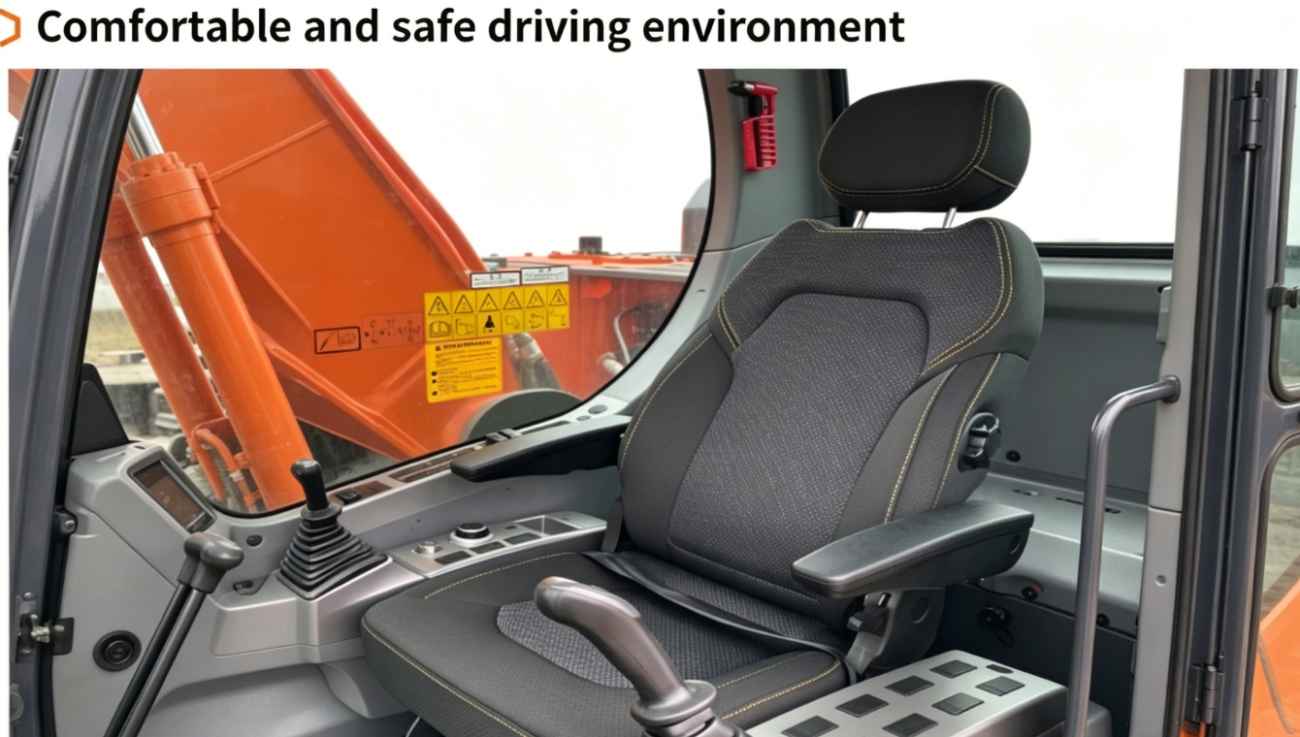

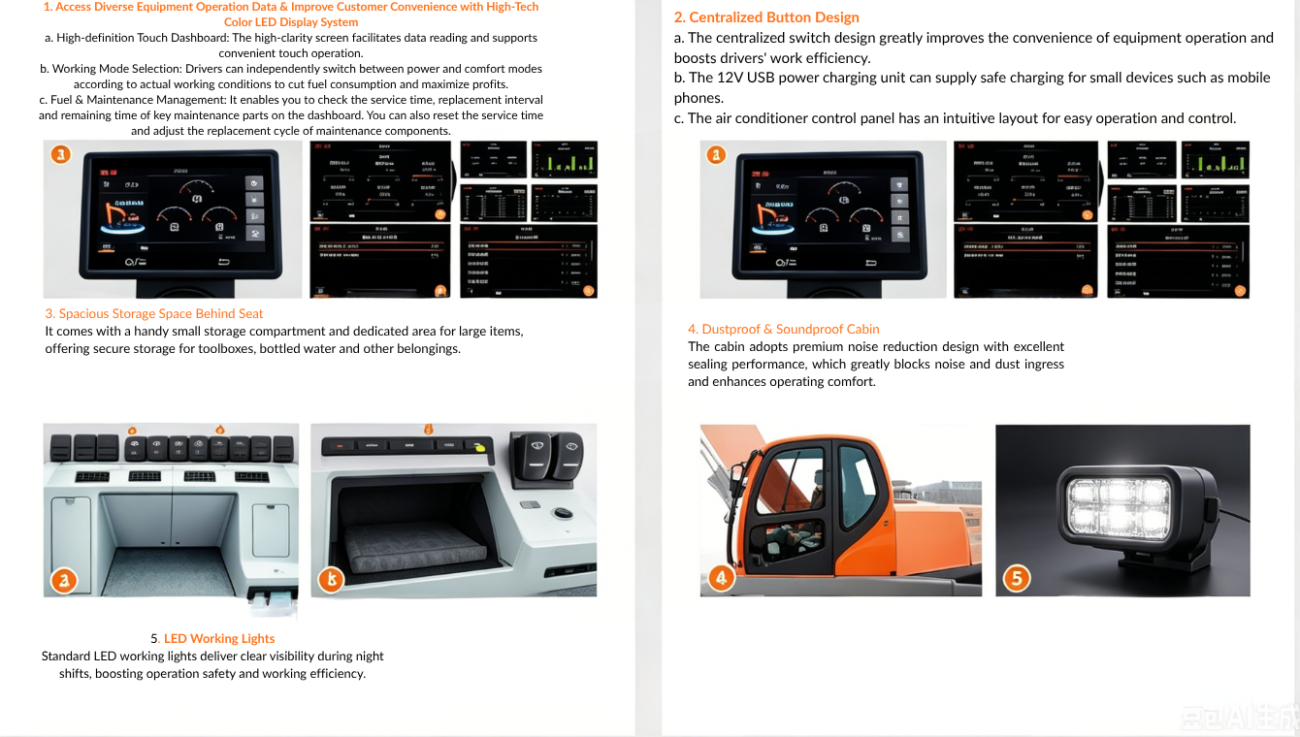

④ Intelligent Luxury Comfort Cab
• High-definition color LED touch display with machine status and maintenance management
• Centralized switch layout for improved operation convenience and efficiency
• Ergonomic operator seat with adjustable positions and shock absorption
• Built-in 12V USB charging port, spacious storage compartments and cup holder
• High-level dust-proof & noise-proof sealed cab design for comfortable operation
• Standard LED work lamps for clear night vision and improved job site safety
• Centralized switch layout for improved operation convenience and efficiency
• Ergonomic operator seat with adjustable positions and shock absorption
• Built-in 12V USB charging port, spacious storage compartments and cup holder
• High-level dust-proof & noise-proof sealed cab design for comfortable operation
• Standard LED work lamps for clear night vision and improved job site safety

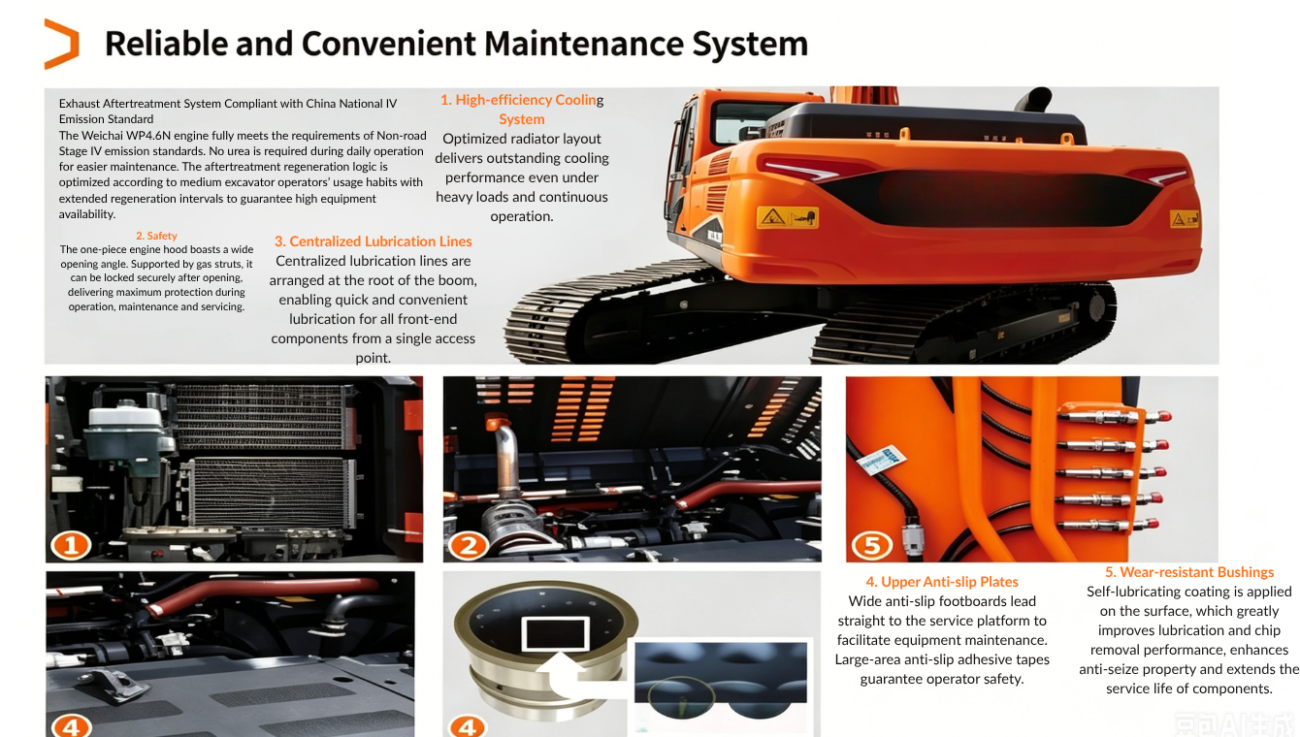

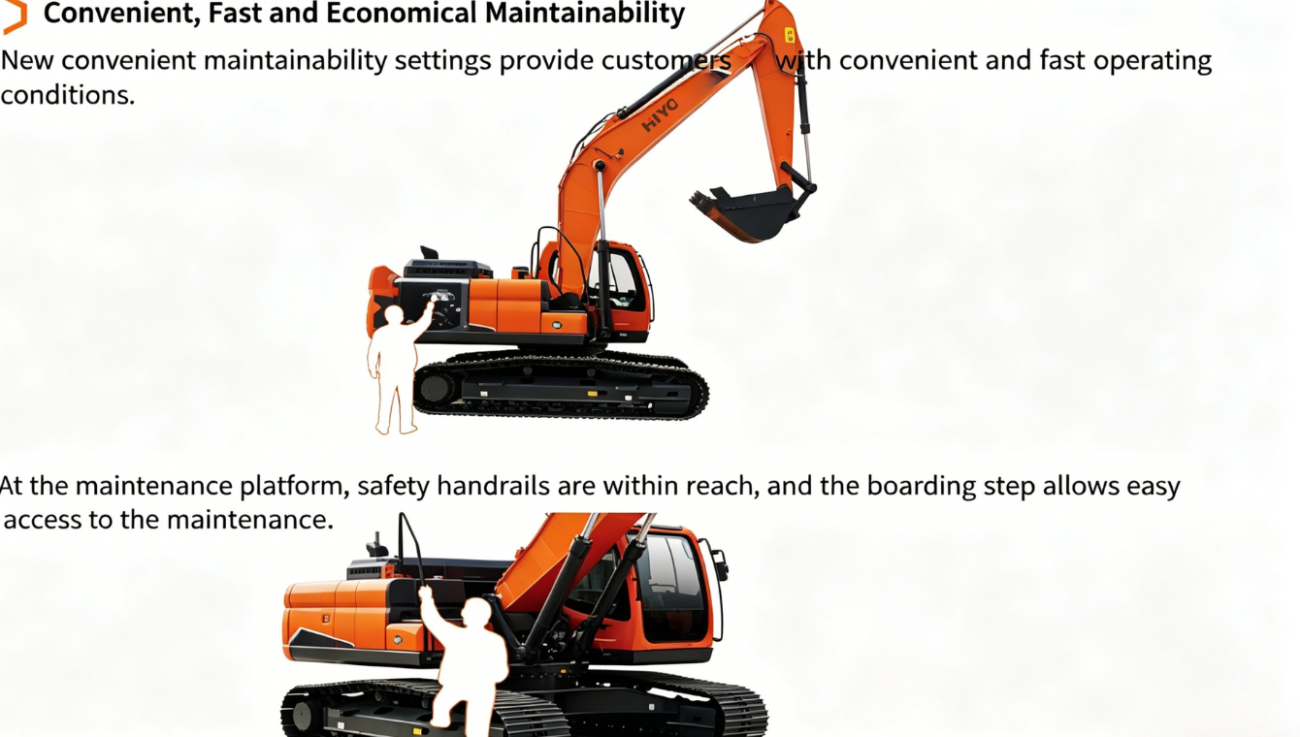

⑤ Easy Maintenance & Reliable Mobility
• Large-opening integral engine hood with gas spring support for safe full access
• Two-speed travel mode: 6.66 / 3.99 km/h with hydraulic brake system
• Standard 600mm wide track shoes for stable driving on various ground conditions
• High-efficiency cooling system for stable temperature under heavy continuous operation
• Wide anti-slip upper platform and safe handrails for convenient maintenance access
• China Stage IV aftertreatment system with extended regeneration intervals
• Two-speed travel mode: 6.66 / 3.99 km/h with hydraulic brake system
• Standard 600mm wide track shoes for stable driving on various ground conditions
• High-efficiency cooling system for stable temperature under heavy continuous operation
• Wide anti-slip upper platform and safe handrails for convenient maintenance access
• China Stage IV aftertreatment system with extended regeneration intervals
Alternative Names
Hiyo HDX210 Medium Crawler Excavator / Hiyo HDX210 Construction Digger / HDX210 Earthmoving Trackhoe / Hiyo 20 Ton Heavy Duty Excavator / HDX210 General Purpose Digging Machine / Hiyo HDX210 Hydraulic Shovel / HDX210 Weichai Engine Excavator / Hiyo NFC Load Control Digger / HDX210 SPC3 Intelligent Power Machine / Hiyo 0.92m³ Bucket Trackhoe / HDX210 China Stage IV Excavator
Complete Machine Technical Specifications
| Category | Item | Unit | Hiyo HDX210 Specification |
|---|---|---|---|
| Basic Specifications | Product Model | / | Hiyo HDX210 |
| Operating Weight | kg | 19800 | |
| Standard Bucket Capacity | m³ | 0.92 | |
| Main Performance | Travel Speed (High/Low) | km/h | 6.66/3.99 |
| Bucket Digging Force | kN | 129.4 (ISO) | |
| Arm Digging Force | kN | 99.0 (ISO) | |
| Engine | Model | / | Weichai WP4.6N |
| Type | / | Inline 4-cylinder four-stroke turbocharged diesel engine | |
| Number of Cylinders | pcs | 4 | |
| Rated Power | kW/rpm | 129/2000 | |
| Displacement | L | 4.6 | |
| Hydraulic System | Main Pump Model | / | Imported customized axial piston pumps |
| Rated System Pressure | MPa | 34.3 | |
| Max Flow | L/min | 414 | |
| Fluid Capacities | Hydraulic Oil Tank Capacity | L | 195 |
| Fuel Tank Capacity | L | 355 | |
| Engine Oil Capacity | L | 18 | |
| Cooling System Capacity | L | 25 | |
| Travel System | Number of Track Shoes per Side | pcs | 45 |
| Standard Track Shoe Width | mm | 600 | |
| Number of Lower Rollers per Side | pcs | 7 | |
| Number of Upper Rollers per Side | pcs | 2 |
