Product Overview：

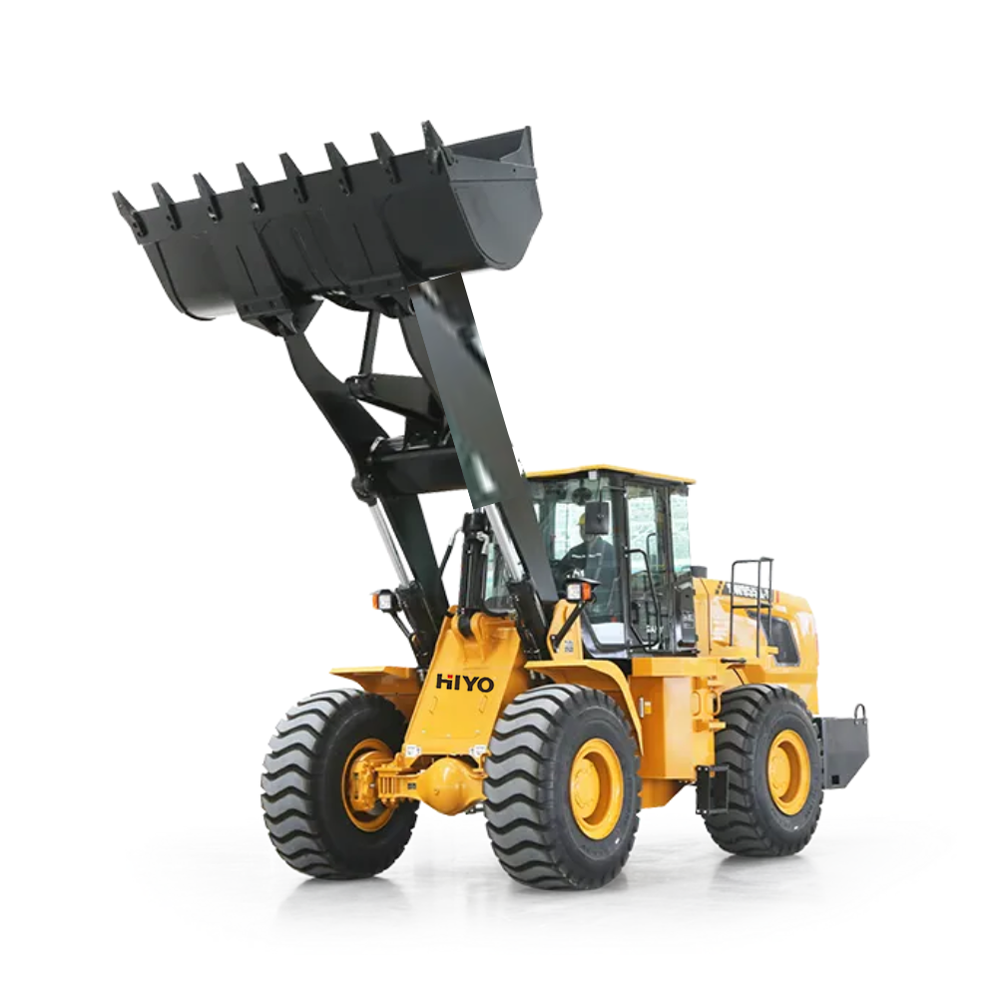

Hiyo HW955K-S is a versatile 5.5-ton wheel loader with a 3300mm wheelbase, compliant with China National Stage IV emission standards. Designed for bulk material handling, this heavy-duty loader integrates upgraded power, hydraulic and cab systems under the “New Power, New Shape, New Technology” concept. Equipped with a 2.8m³ standard bucket, 175kW Deutz engine and reinforced driveline components, it delivers strong breakout force, low fuel consumption and smooth control. Ideal for quarry, earthmoving, waste recycling and aggregate yard jobs, it balances high efficiency, operator comfort and long service life for heavy continuous workloads.

Key Highlight Features；

Key Highlight Features

1. Stage IV Deutz engine: Stable power output, low fuel burn and easy routine maintenance
2. Reinforced 5-ton planetary gearbox: Max traction 168kN, work efficiency +5%
3. Heavy-duty wet drive axles with full hydraulic dual-circuit brake system for safety
4. Three-pump combined load-sensing hydraulics: Energy-saving, responsive steering
5. Spacious deluxe cab with 9-way adjustable suspension seat, 6-inch display and rear view camera option
6. Robust frame and swing rear axle: Adapt to long-term heavy loading operationsPerformance Advantages：

   Powered by a 175kW Deutz engine, HW955K-S achieves 180kN maximum breakout force to tackle compacted stone and dense soil. The matched planetary transmission boosts torque transfer and traction, cutting loading cycle time. Three-pump confluence hydraulics allocate flow on demand, reducing power waste while keeping steering light. Dual independent brake circuits eliminate failure risks. Sealed low-noise cab and full air conditioning ease long-hour operation. Heavy-duty axles and swing rear frame reduce breakdown frequency, lowering overall operation cost for mines and aggregate plants.

   Technical Specification：

   | —- | —- |

   | Rated Load | 5500kg |

   | Operating Weight | 17000kg |

   | Standard Bucket Capacity | 2.8m³ |

   | Max Traction Force | 168kN |

   | Max Breakout Force | 180kN |

   | Engine Model | D09S4-240E0 |

   | Rated Power / Speed | 175kW/2000rpm |

   | Total Hydraulic Cycle Time | 9.5±0.5s |

   | Dumping Height | 3126±50mm |

   | Dumping Reach | 1050mm |

   | Overall Dimension(L×W×H) | 8130×3030×3520mm |

   | Wheelbase | 3300mm |

   Article ：

   Hiyo HW955K-S 5.5-ton stage IV wheel loader stands out as an all-round heavy equipment for construction and mining sites. Built with a 3300mm wheelbase and 2.8m³ bucket, it carries 5500kg rated load steadily for sand, ore and waste material transfer. Its D09S4 Deutz engine hits 175kW power with excellent fuel economy, supported by a reinforced planetary gearbox lifting traction to 168kN and boosting work efficiency by 5%. Three-pump combined hydraulic system delivers sensitive, energy-saving movement, while full hydraulic dual-circuit brakes guarantee operational safety. The deluxe sealed cab lowers noise far below industry standards, fitted with 9-way adjustable suspension seat and optional rear-view display to reduce operator fatigue. Heavy-duty front and rear drive axles with swing rear frame extend service life under continuous heavy loads. Whether for quarry aggregate production, earthmoving projects or waste disposal yards, Hiyo HW955K-S balances strong power, low running cost and intelligent control, making it a cost-effective loading solution for global contractors and material processing plants.

   Article：Looking for a reliable 5-ton wheel loader for heavy bulk material jobs? Hiyo HW955K-S stage IV loader brings comprehensive upgrades on power, hydraulic and cab systems. With 180kN breakout force, it easily digs hard soil and compact stone, with total hydraulic cycle time controlled within 9.5s to speed up loading cycles. The heavy-duty wet axle design simplifies maintenance via split brake calipers, while the swing rear frame improves structural stability on uneven ground. Load-sensing three-pump hydraulics distribute flow dynamically to cut unnecessary energy loss and deliver light steering for all-day operation. The operator cabin features multiple air outlets, 24V power port and wide vision windows to enhance comfort and safety. Complying with strict national emission rules, the Deutz power unit meets global environmental standards. Widely applied in mixing stations, quarrying and earthworks, Hiyo HW955K-S reduces fuel consumption and maintenance frequency, maximizing profit for construction, mining and aggregate enterprises worldwide.

   Article ：

   Hiyo HW955K-S wheel loader is engineered as a high-efficiency intelligent model for medium and heavy loading tasks. As a 5.5T all-purpose loader with 17000kg operating weight, it integrates mature Deutz power, reinforced transmission and advanced hydraulic technology. The 168kN max traction ensures stable pushing and shoveling, while dual independent brake circuits provide double safety protection during long shifts. Its brand-new ergonomic cab optimizes sound insulation and temperature control, with a shock-absorbing seat adjustable in multiple angles to ease fatigue during continuous work. The optional 6-inch monitor and rear view camera eliminate blind spots to lower site safety risks. All core structural parts adopt thickened wear-resistant materials to cope with harsh mine and quarry environments. From stockpiling sand to loading mine waste and site earthmoving, Hiyo HW955K-S delivers consistent high productivity, low failure rate and long service life, standing as a premium heavy machinery choice for international construction fleets

   Title: Hiyo Global Manufacturing Strength Supports Reliable Wheel Loader：

   As a world-leading heavy machinery brand, Hiyo owns large-scale intelligent manufacturing workshops covering full production chains of wheel loaders. Every HW955K-S loader undergoes strict raw material inspection, precision welding and assembly procedures inside standardized production lines. Automated processing equipment ensures consistent dimensional accuracy for axles, gearboxes and hydraulic components. All finished machines pass full load performance testing before delivery to eliminate factory defects. Large production capacity enables stable short-cycle delivery for global buyers, whether small dealers or large mining groups. Hiyo’s global factory layout guarantees fast spare parts supply and local after-sales service, letting clients obtain durable HW955K-S loaders with reliable lead time and comprehensive technical support worldwide.

   Title: Advanced Workshop Production Line for Hiyo HW955K-S Wheel Loader：

   Hiyo’s dedicated wheel loader workshop adopts fully automated production flow to manufacture HW955K-S models. Robotic arms complete frame welding with high precision, while dedicated assembly stations separately install power, hydraulic and cab systems. All key components including Deutz engines and reinforced planetary gearboxes are stored in classified intelligent warehouses for fast matching. Real-time quality monitoring sensors track each assembly link to catch assembly errors instantly. Post-assembly test zones simulate mine, quarry and earthwork working conditions to

   verify traction, breakout force and brake performance. The tidy, standardized workshop strictly follows international production standards, ensuring every delivered HW955K-S owns unified high quality and stable working performance for global construction markets.

   Title: Independent R&D Team Upgrades Hiyo HW955K-S Stage IV Loader Tech：

   Hiyo boasts a global professional R&D team focusing on wheel loader power, hydraulic and cab technology iteration. The HW955K-S model is fully independently developed by Hiyo engineers, targeting global stage IV emission standards and heavy-duty market demands. R&D staff optimized three-pump load-sensing hydraulic, reinforced drive axle structure and low-noise sealed cab through thousands of simulation and field tests. They adjusted engine-transmission matching to raise fuel efficiency by cutting power waste under heavy loads. Intelligent monitoring system and optional rear-view auxiliary vision are original R&D achievements to boost operation safety. Continuous technical innovation makes Hiyo HW955K-S own obvious power, efficiency and comfort advantages over competing medium loaders.

   Title: Hiyo Core Concept: Quality Changes the World Guides Loader Design：

   Quality Changes the World” is Hiyo’s persistent brand philosophy, fully implemented in the design and production of HW955K-S wheel loader. Every structural part, hydraulic component and engine matching scheme prioritizes long service life, stable performance and low operation cost. R&D and production teams refuse low-cost inferior materials to avoid frequent breakdowns on harsh mine sites. The design balances heavy loading capacity, fuel economy and operator comfort instead of only pursuing low price. Global after-sales service system carries forward the quality concept, providing timely maintenance and spare parts to extend machine service life for overseas clients. Hiyo always focuses on long-term value rather than short-term profit, delivering cost-effective HW955K-S loaders to global construction, quarry and mining industries.Title: Large-Scale Global Layout Makes Hiyo Heavy Machinery Accessible Worldwide ：

   Hiyo operates multiple industrial parks and overseas branches worldwide, forming a complete industrial scale covering R&D, manufacturing, sales and after-sales service. Large production base outputs massive HW955K-S wheel loaders monthly to satisfy bulk orders from Asia, Africa, Europe and Latin America. Local overseas warehouses store common spare parts to cut maintenance waiting time for global users. Professional international sales teams offer customized loader configuration plans for quarry, earthmoving and waste recycling projects. The huge industrial scale lowers comprehensive production cost and stabilizes equipment pricing. With global logistics cooperation, Hiyo delivers HW955K-S loaders safely and fast to all major construction and mining markets across the globe.

   Quarry & Aggregate Production：

   Hiyo HW955K-S handles stone scooping, stockpiling and truck loading at quarries. Strong breakout force digs hard rock, large bucket boosts daily aggregate output, reinforced axles adapt long-term stone loading workloads.

   Earthmoving Construction Projects：

   English: Fit for road, building and infrastructure earthworks. It shovels, transports and dumps soil, sand and gravel efficiently; light steering and fast hydraulic cycle shorten construction period.

   Mine Material Handling：

   Works for underground and open-pit mine waste and ore transfer. Full hydraulic dual brake system improves safety, heavy-duty frame resists impact from rough mine materials.

   Waste & Scrap Material Recycling： Process construction waste, industrial scraps and rubble. Powerful traction and stable lifting capacity help classify and load bulk waste into transport trucks continuously.

   Concrete Mixing Station Feeding：

   Supply sand, stone and raw materials to mixing stations. Steady rated load and fast cycle time guarantee continuous feeding for concrete production lines.
